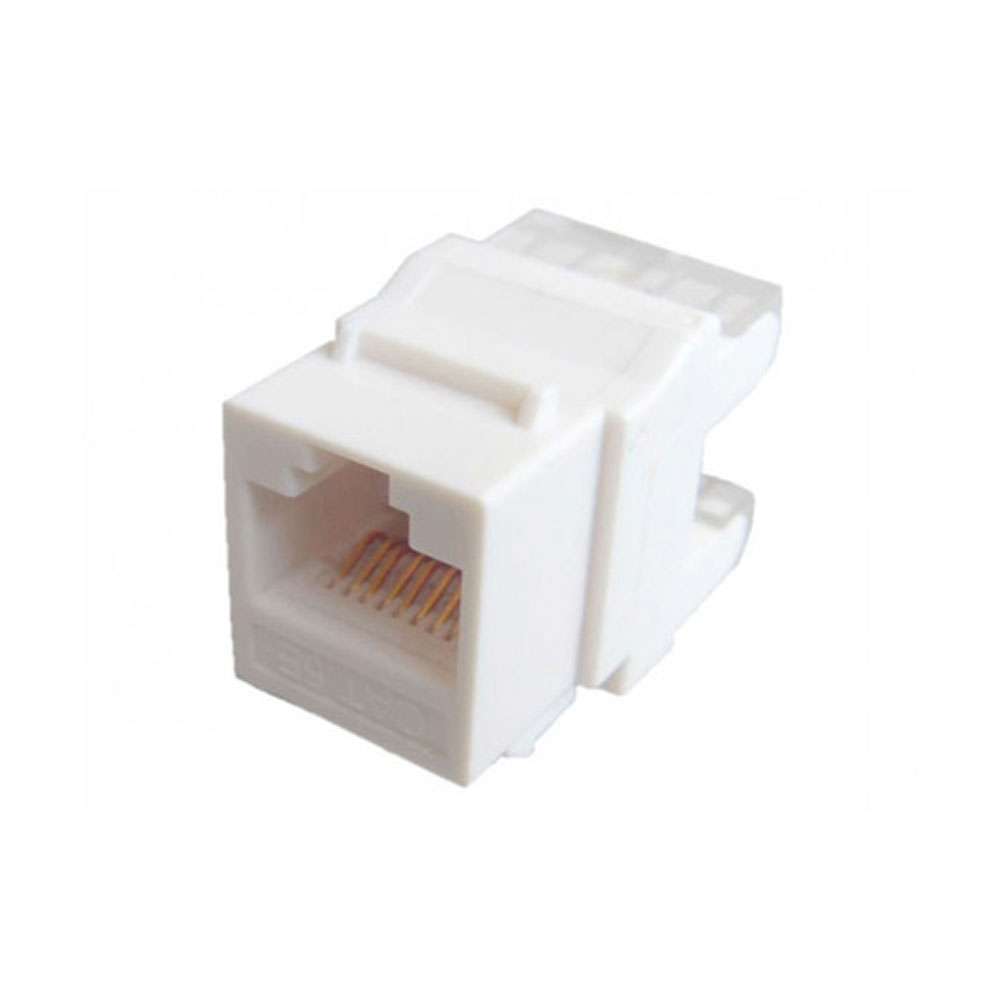

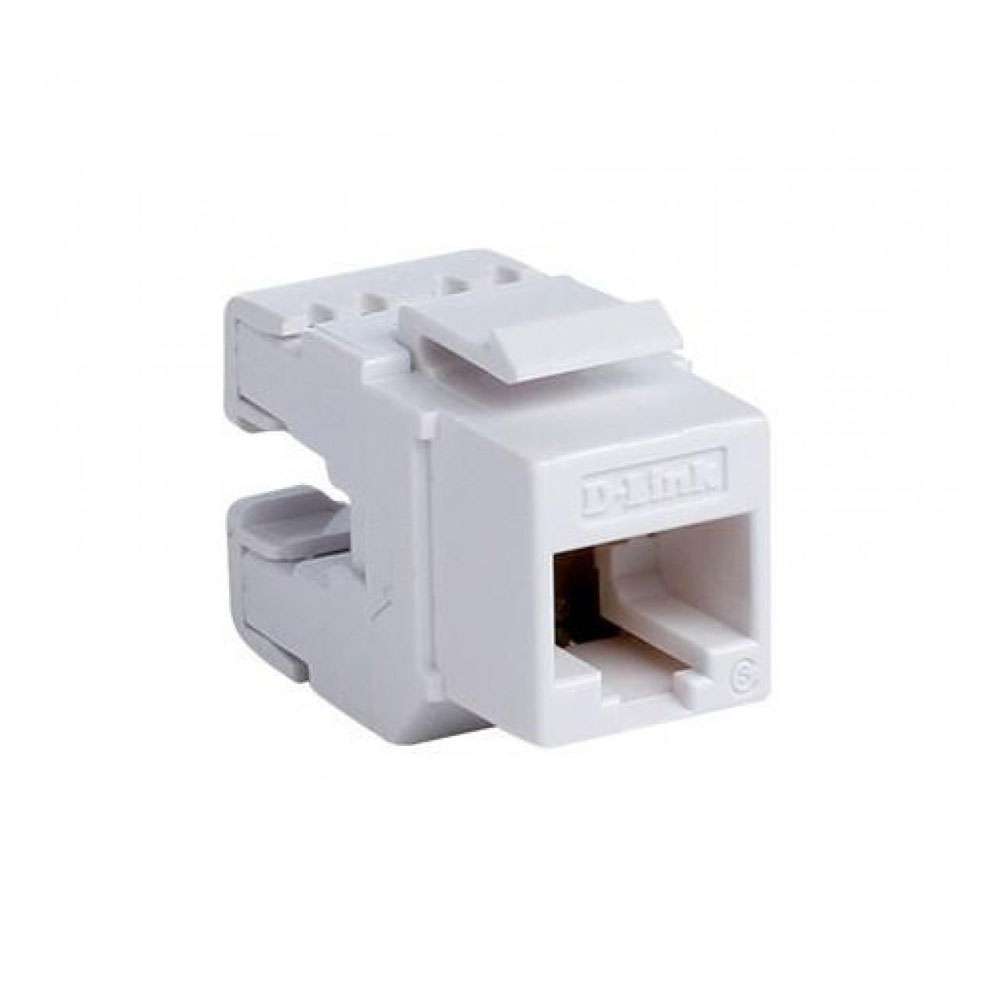

D-Link Cat6 UTP Keystone Jacks – NKJ-C6WHI1B21

Description

RJ45 8P 8C 180˚C 50u Punch Down Jack
Terminating 4 pairs, 22-26 AWG Cable
Universal labels color coded for T568A and T568B wiring schemes
Fitting high density keystone panel
UL, ETL certified
T568A & T568B wiring sticker
Insertion force: 20N max (IEC 60603-7-4)
Retention strength : 7.7 kg between jack and plug
Operation temperature : -10˚C to 60̊C (ISO/IEC 11801, ANSI/TIA/EIA 568 C.2)
Life ( Mating Cycles): Jack: 750 cycle min (ISO/IEC 11801, IEC 60603-7-4)
IDC: suitable for 22-26 AWG stranded and solid wire, compatible with both 110 & Krone punch down tools
The Cat6 transmission performance is in compliance with the ANSI/TIA/EIA 568 C.2 standard

SPECIFICATION	Brand D-Link Model Number NKJ-C6WHI1B21 RJ45 Jack Housing- ABS+PC; UL 94V-0; with optional color Contact Bracket- PC; UL 94V-2; transparent RJ45 Jack Contact Material- Phosphor Bronze with Nickel Plated Finish- 50 micro-inch Gold Plated on plug contact area IDC Housing- PC + Glass Fiber; UL 94V-2 Terminal – Phosphor Bronze; Tin Plated IDC CAP ABS; UL 94V-0
