MikroTik Routers and Wireless RB3011UiAS-RM

Description

MikroTik Routers and Wireless RB3011UiAS-RM

The RB3011 is a new multi port device, our first to be running an ARM architecture CPU for higher performance than ever before. The RB3011 has ten Gigabit ports divided in two switch groups, an SFP cage and for the first time a SuperSpeed full size USB 3.0 port, for adding storage or an external 3G/4G modem.

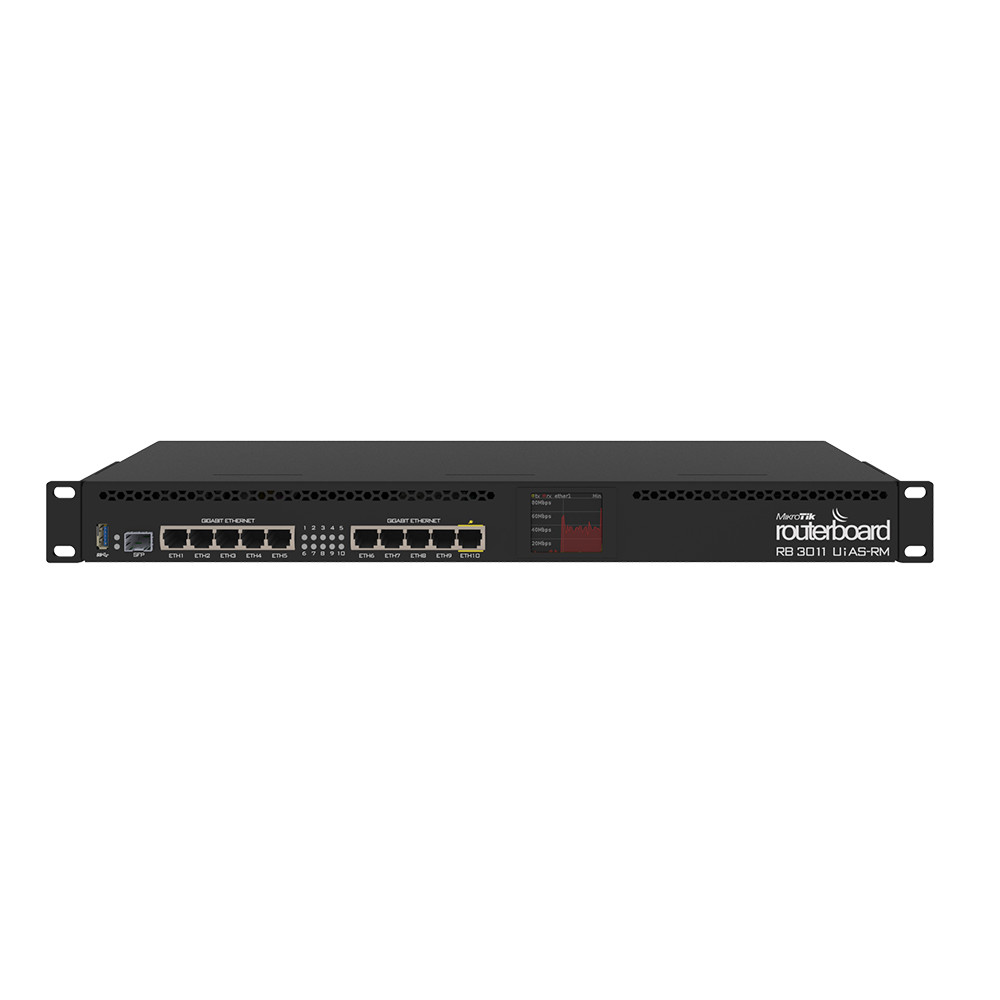

RB3011UiAS-RM Unit comes with 1U rackmount enclosure, a touchscreen LCD panel, a serial console port and PoE output functionality on the last Ethernet port.

Additional information

SPECIFICATION	Brand Microtik Model Number RB3011UiAS-RM weight 1.00 kg Architecture ARM 32bit CPU IPQ-8064 CPU core count 2 CPU nominal frequency 1.4 GHz Switch chip model QCA8337 RouterOS license 5 Operating System RouterOS Size of RAM 1 GB Storage size 128 MB Storage type NAND MTBF Approximately 200'000 hours at 25C Tested ambient temperature -20°C to 70°C IPsec hardware acceleration Yes Number of DC inputs 2 (DC jack/ PoE-IN) DC jack input Voltage 10-30 V Max power consumption 30 W Max power consumption without attachments 10 W Cooling type Passive PoE in Passive PoE PoE in input Voltage 10-30 V PoE-out ports Ether10 PoE out Passive PoE Max out per port output (input 18-30 V) 600 mA Max total out (A) 600 mA 10/100/1000 Ethernet ports 10 SFP ports 1 Serial console port RJ45 Number of USB ports 1 USB Power Reset Yes USB slot type USB 3.0 type A Max USB current (A) 1 PCB temperature monitor Yes Voltage Monitor Yes Beeper Yes Certification CE EAC ROHS IP IP20 Package Dimension (W, H, L ) in cm 9.2 x 4.4 x 44.3

SPECIFICATION

Brand Microtik
Model Number RB3011UiAS-RM
weight 1.00 kg
Architecture ARM 32bit
CPU IPQ-8064
CPU core count 2
CPU nominal frequency 1.4 GHz
Switch chip model QCA8337
RouterOS license 5
Operating System RouterOS
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -20°C to 70°C
IPsec hardware acceleration Yes
Number of DC inputs 2 (DC jack/ PoE-IN)
DC jack input Voltage 10-30 V
Max power consumption 30 W
Max power consumption without attachments 10 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 10-30 V
PoE-out ports Ether10
PoE out Passive PoE
Max out per port output (input 18-30 V) 600 mA
Max total out (A) 600 mA
10/100/1000 Ethernet ports 10
SFP ports 1
Serial console port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1
PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes
Certification CE
EAC
ROHS
IP IP20
Package Dimension (W, H, L ) in cm 9.2 x 4.4 x 44.3
