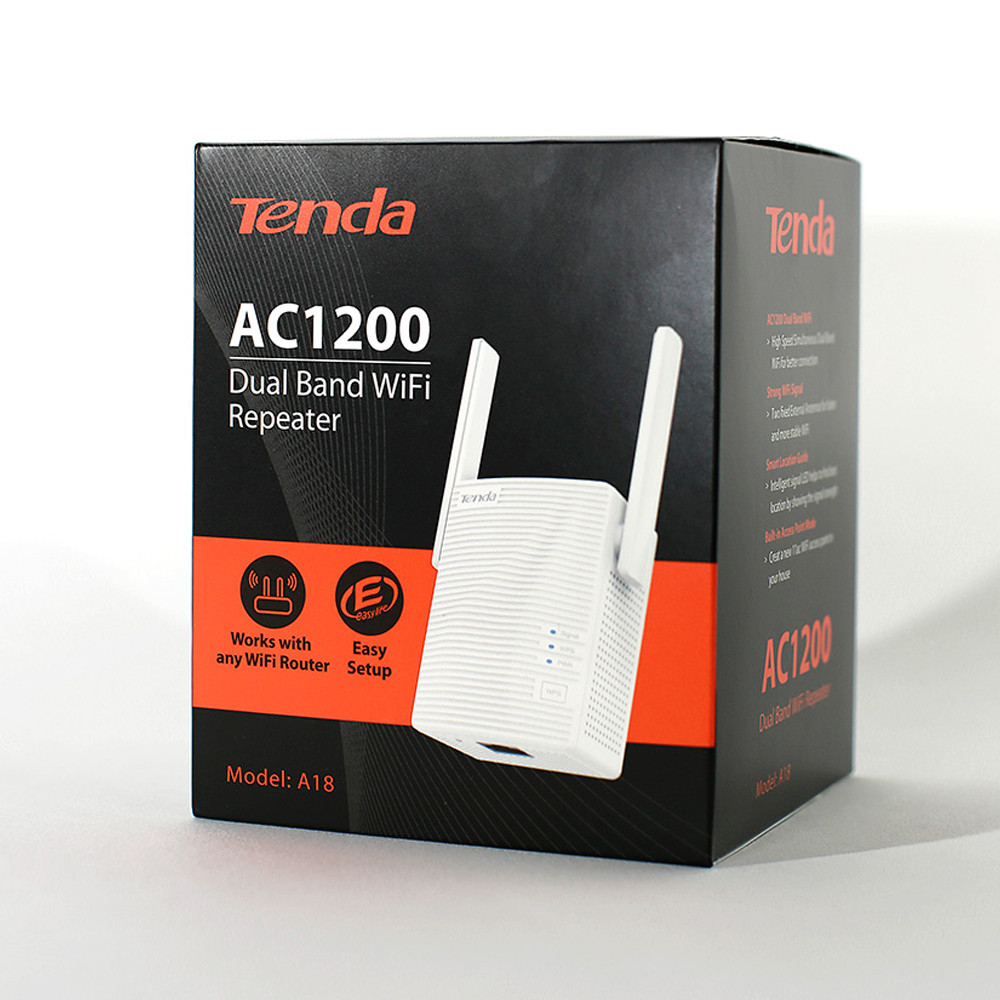

Tenda A18 AC1200 Gigabit WiFi Range Extender

Description

Tenda A18 AC1200 Gigabit WiFi Range Extender

Works Well with Optical Routers for Strong Wall Penetration Capacity on 5 GHz Band

Ordinary 11AC routers performs poorly on wall penetration on 5 GHz band. With A18 to repeat 5 GHz WiFi network, data transmission rate on 5 GHz band can be up to 867 Mbps, giving a full play to your 100 Mbps optical broadband. By resolving the weakness of WiFi coverage on 5 GHz band, A18 brings you with fast internet experience at home

Scan Quality Channel Automatically for Stable, Reliable and Fast Internet Experience

Equipped with high quality PCB dual band antennas, the radio frequency distance between antennas of A18 has been improved to um. Each antenna provides both 2.4 GHz and 5 GHz WiFi networks, and extends WiFi networks both on 2.4 GHz and 5 GHz bands . A18 can automatically select high quality channel for you when signal fluctuates, and keeps your devices online even in the move by switching to the network with stronger signals automatically

Visual Signal LED Guides You to Find the Best Position

Guided by the color of Signal LED, you can easily find the best position for your repeater according to your actual network environment. Blue indicates good connection , and red indicates bad connection.

Configure Your Repeater via Smart Phones/Tablets

Simplicity is practical. You can configure your repeater via smart phones or Tablets

Elegant and Compact Appearance

Featured with a small size, it is easy for you to plug A18 into your electrical outlet.

One More 100 Mbps LAN port for Wired Extension

Signal is full but the internet is still inaccessible? Want to watch online TV programs on a LCD TV with LAN port but without WiFi adapter?
A18 can relieve you from these two painstaking. By connecting the Ethernet cable from your router to the LAN port of A18, you can extend your existing WiFi network in wired manner. To watch online TV programs, you just need to connect the LAN port of A18 that has extended successfully to the LAN port of your LCD TV

More functions

Hide SSID, Extend your existing WiFi network via WPS button, Mix WPA/WPA2 encryption mode

Additional information

SPECIFICATION	Brand Tenda Model Number A18 weight 0.40 kg Interfaces 110/100Mbps RJ45 Antenna Type 2 External 2dBi dual-band omni-directional antenna Button 1 * WPS Button 1 * Reset Button LED Indicator 1 * Signal LED 1 * WPS LED 1 * Power LED Power Supply 9V0.8A; built-in Power Consumption 5.2W (max power consumption) Wireless Standard IEEE802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11a IEEE 802.11ac Frequency 5 GHz(11ac) 2.4 GHz Data Rate 5GHz – Up to 867Mbps 2.4GHz – Up to 300Mbps RSSI 2.4 GHz 11b-1M – -97dBm 11g-54M – -76dBm 11n-20M-MCS7 – -74dBm 11n-40M-MCS7 – -72dBm 5 GHz 11a-6M – -95dBm 11n-20M-MCS7 – -74dBm 11n-40M-MCS7 – -72dBm 11ac-80M-MCS9 – -63dBm Transmission Power <20dBm Wireless Modes Repeater Mode Access Point Mode Wireless Security Default encryption mode – Mix WPA-PSK/WPA2-PSK WPA algorithm – TKIP Certification CE FCC RoHS Plug Type US EU UK BR AU AR System Tool Firmware upgrade Restore factory settings Login password and Reboot Environment Operating Temperature – 0℃~40℃ Storage Temperature – -40℃~70℃ Operating Humidity – (10~90)% RH; non-condensing Related Products AC6 AC8 AC19 AC21 Package Dimension (W, H, L ) in cm 5.8 x 4.8 x 8

SPECIFICATION

Brand Tenda
Model Number A18
weight 0.40 kg
Interfaces 1*10/100Mbps RJ45
Antenna Type 2 * External 2dBi dual-band omni-directional antenna
Button 1 * WPS Button
1 * Reset Button
LED Indicator 1 * Signal LED
1 * WPS LED
1 * Power LED
Power Supply 9V0.8A; built-in
Power Consumption 5.2W (max power consumption)
Wireless Standard IEEE802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11a
IEEE 802.11ac
Frequency 5 GHz(11ac)
2.4 GHz
Data Rate 5GHz – Up to 867Mbps
2.4GHz – Up to 300Mbps
RSSI 2.4 GHz
11b-1M – -97dBm
11g-54M – -76dBm
11n-20M-MCS7 – -74dBm
11n-40M-MCS7 – -72dBm
5 GHz
11a-6M – -95dBm
11n-20M-MCS7 – -74dBm
11n-40M-MCS7 – -72dBm
11ac-80M-MCS9 – -63dBm
Transmission Power <20dBm
Wireless Modes Repeater Mode
Access Point Mode
Wireless Security Default encryption mode – Mix WPA-PSK/WPA2-PSK
WPA algorithm – TKIP
Certification CE
FCC
RoHS
Plug Type US
EU
UK
BR
AU
AR
System Tool Firmware upgrade
Restore factory settings
Login password
and Reboot
Environment Operating Temperature – 0℃~40℃
Storage Temperature – -40℃~70℃
Operating Humidity – (10~90)% RH; non-condensing
Related Products AC6
AC8
AC19
AC21
Package Dimension (W, H, L ) in cm 5.8 x 4.8 x 8
