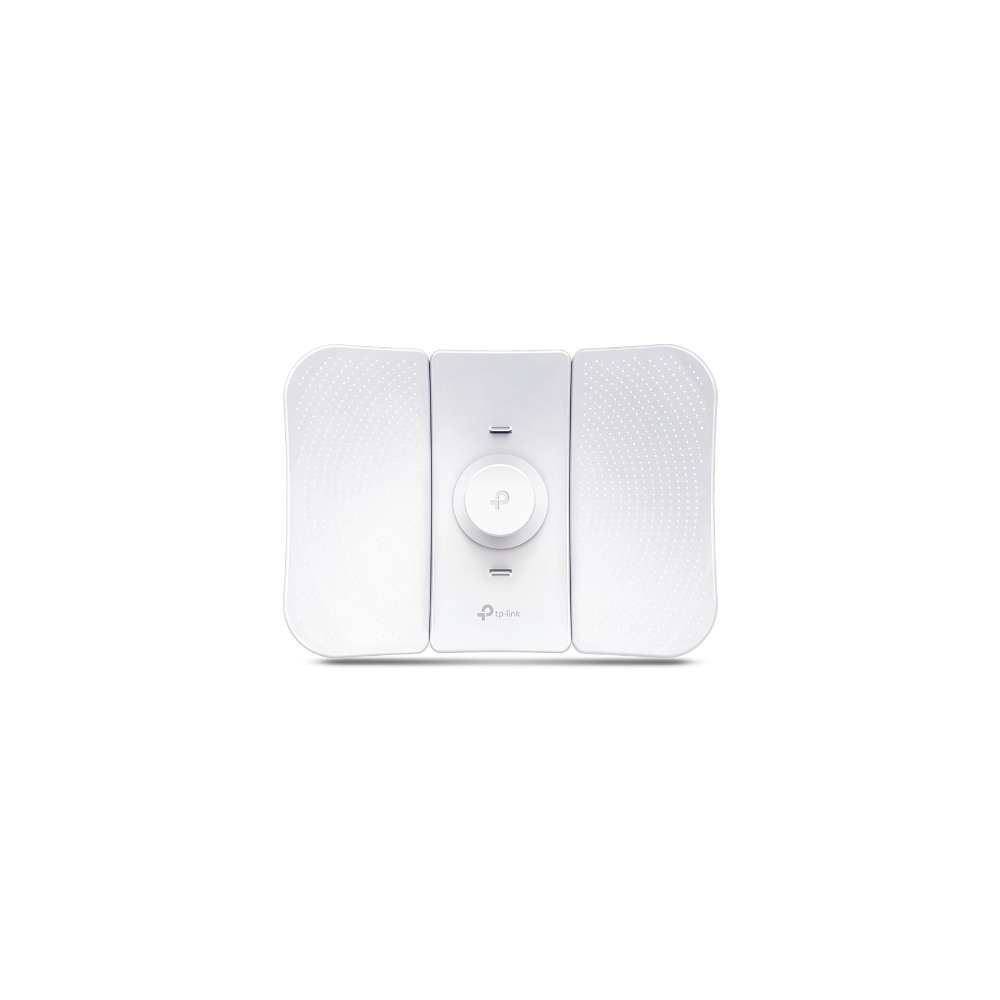

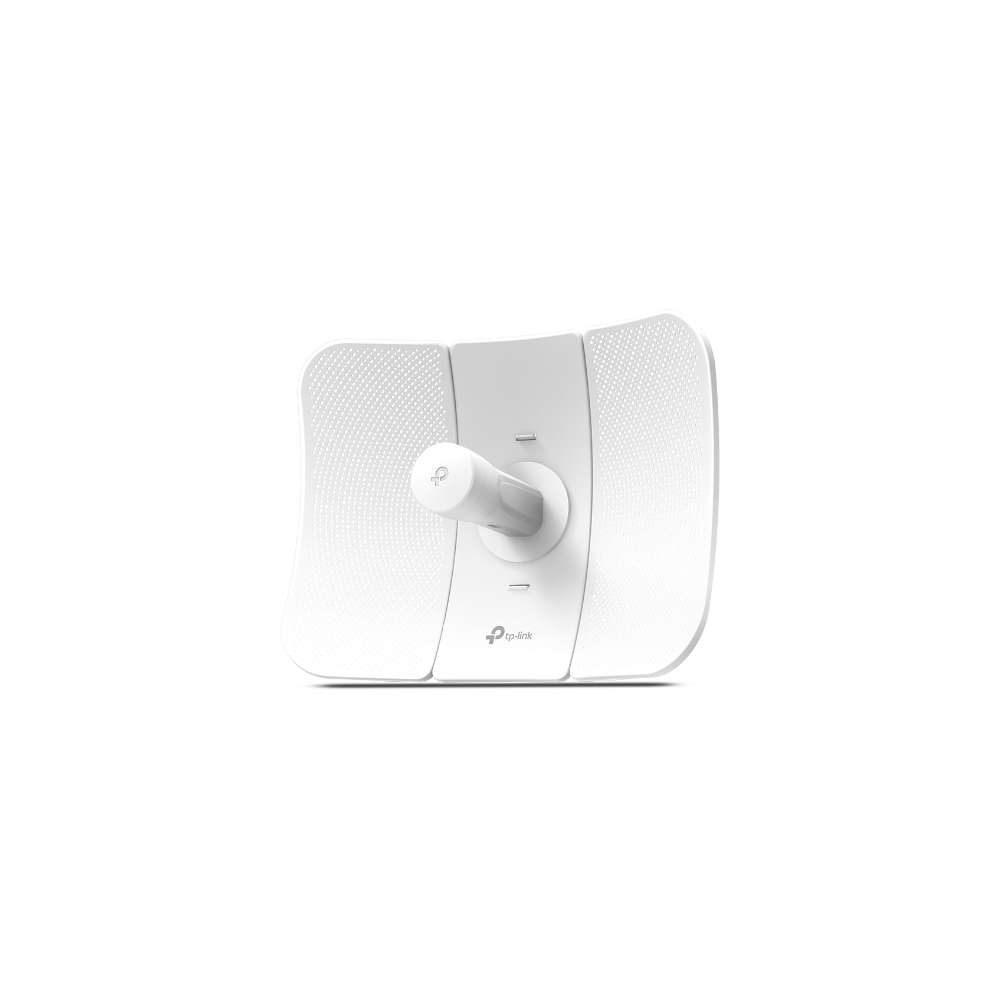

TP-Link 5 GHz AC867 23 dBi Outdoor CPE

Description

Features

802.11ac for up to 867Mbps on 5GHz wireless data rate

23dBi high-gain directional 2×2 MIMO, ideal for long-distance application

Excellent beam directivity, improved latency and noise cancellation

Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds

Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability

Pharos Control gives administrators a free, centralized management system

Passive PoE supports to allow flexible deployment and convenient installation

Additional information

SPECIFICATION	Brand TP-Link Model Number CPE710 Color White Processor Qualcomm 750MHz CPU MIPS 74Kc Memory 128 MB DDR2 RAM 16 MB Flash Interface 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE) 1 Reset Button Antenna Gain 23 dBi Protection 15 KV ESD Protection 6 KV Lightning Protection Wireless Standards IEEE 802.11a/n/ac Wireless Speeds Up to 867 Mbps (80 MHz Dynamic) Up to 400 Mbps (40 MHz Dynamic) Up to 173.4 Mbps (20 MHz Dynamic) Frequency 5.15–5.85 GHz Transmit Power Max. 27 dBm (Adjustable power by 1dBm) Management Discovery and Remote Management via Pharos Control application HTTP/ HTTPS Web-based management System log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server System-level Optimizations Optimized IGMP Snooping Proxy for multicast applications Button Remote Reset Button Power Status LEDs Green Input 100-240VAC Package Contents Outdoor Wireless CPE 24V 0.5A Passive PoE Adapter Pole Mounting Kits AC Power Cord Installation Guide Package Dimension (W, H, L ) in cm 28 x 20.7 x 36.6 Warranty 1 Year Warranty

SPECIFICATION

Brand TP-Link
Model Number CPE710
Color White
Processor Qualcomm 750MHz CPU
MIPS 74Kc
Memory 128 MB DDR2 RAM
16 MB Flash
Interface 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
1 Reset Button
Antenna Gain 23 dBi
Protection 15 KV ESD Protection
6 KV Lightning Protection
Wireless Standards IEEE 802.11a/n/ac
Wireless Speeds Up to 867 Mbps (80 MHz
Dynamic)
Up to 400 Mbps (40 MHz
Dynamic)
Up to 173.4 Mbps (20 MHz
Dynamic)
Frequency 5.15–5.85 GHz
Transmit Power Max. 27 dBm (Adjustable power by 1dBm)
Management Discovery and Remote Management via Pharos Control application
HTTP/ HTTPS Web-based management
System log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
System-level Optimizations Optimized IGMP Snooping
Proxy for multicast applications
Button Remote Reset Button
Power Status LEDs Green
Input 100-240VAC
Package Contents Outdoor Wireless CPE
24V 0.5A Passive PoE Adapter
Pole Mounting Kits
AC Power Cord
Installation Guide
Package Dimension (W, H, L ) in cm 28 x 20.7 x 36.6
Warranty 1 Year Warranty
