Description

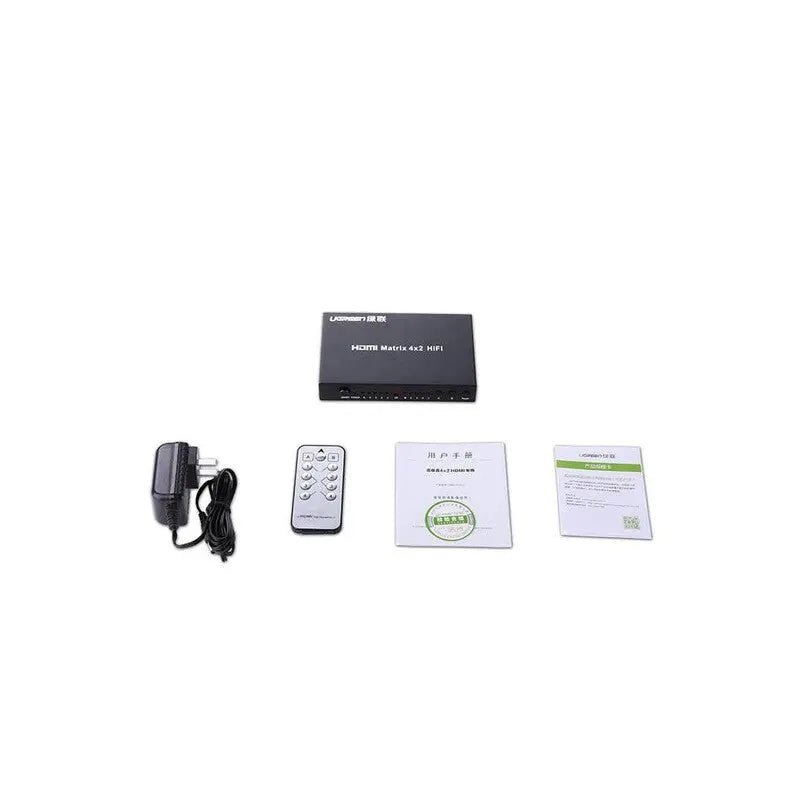

Brand / SKU: UGREEN 40216 | Product type: a powered 4-input, 2-output HDMI matrix that can select which source feeds each HDMI display and can also send the same selected source to both displays | Signal path: Four HDMI source inputs → independent A/B matrix selection → two HDMI display outputs. Optical S/PDIF and 3.5mm analogue audio outputs provide separate audio connection options from the matrix path. | Inputs: 4 × HDMI Type-A female | Outputs: 2 × HDMI Type-A female; 1 × optical S/PDIF; 1 × 3.5mm audio | Power: DC 5V/1A adapter required and listed in the kit | Topology: 4 HDMI inputs / 2 HDMI outputs | Listed maximum: 4K@30Hz | Full-HD mode: 1080p@60Hz | Listed standard: HDMI 1.4 | Audio outputs: Optical S/PDIF + 3.5mm | Power: DC 5V/1A | Listed dimensions: 21 × 6.8 × 2cm
