Description

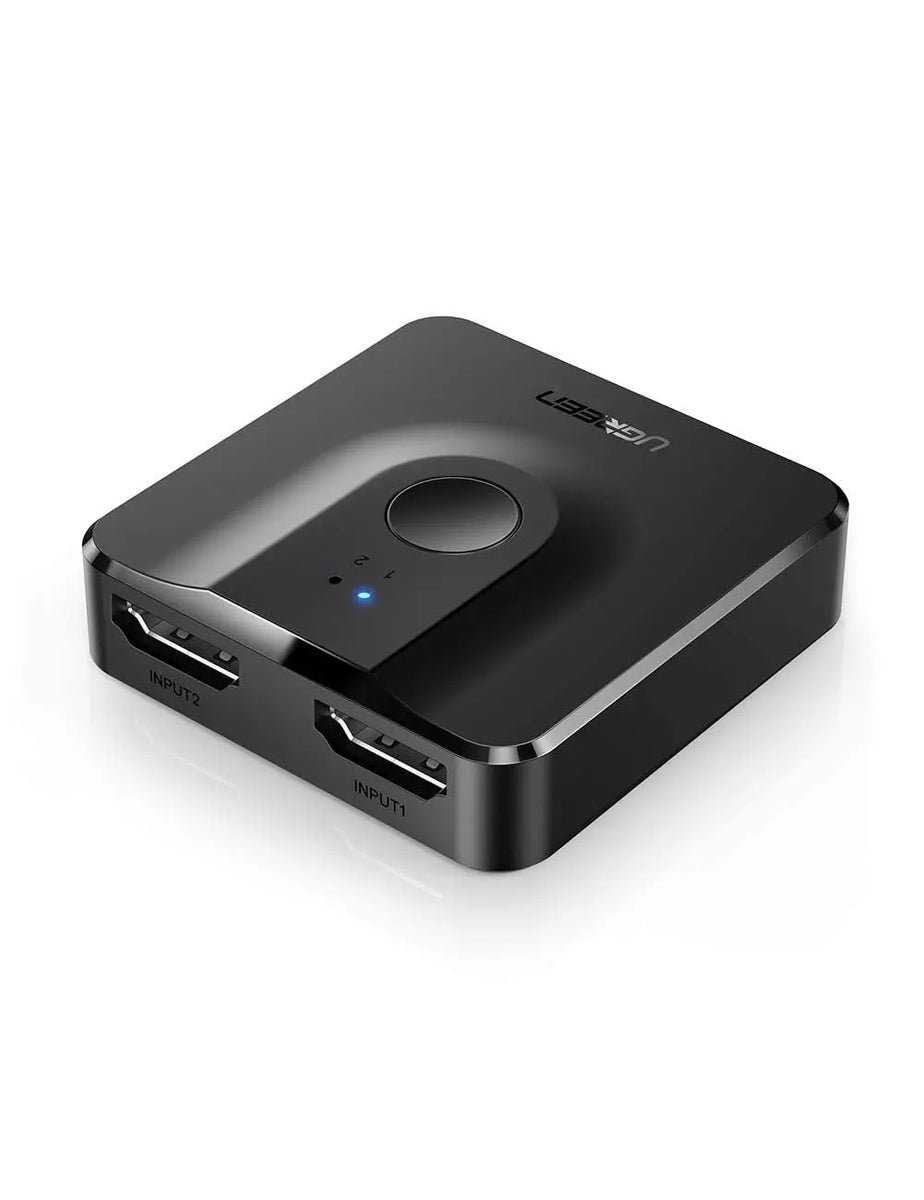

Brand / SKU: UGREEN 50966 | Product type: a passive-style manual bidirectional HDMI selector that works as either two sources to one display or one source to one of two displays | Signal path: Mode A: two HDMI sources → button selects one → one display. Mode B: one HDMI source → button selects one → one of two displays. It never drives both display branches simultaneously. | Inputs: Three identical HDMI sockets used according to the chosen 2-in/1-out or 1-in/2-out arrangement | Outputs: One selected HDMI path at a time | Power: No external power required | Topology: Bidirectional 2-to-1 or 1-to-2 selector | Simultaneous displays: 1 only | Listed maximum: 4096×2160@60Hz | Other listed mode: 1080p@120Hz | External power: Not required | Switching delay: 3–7 seconds listed | Memory: No; Port 1 is default
