Description

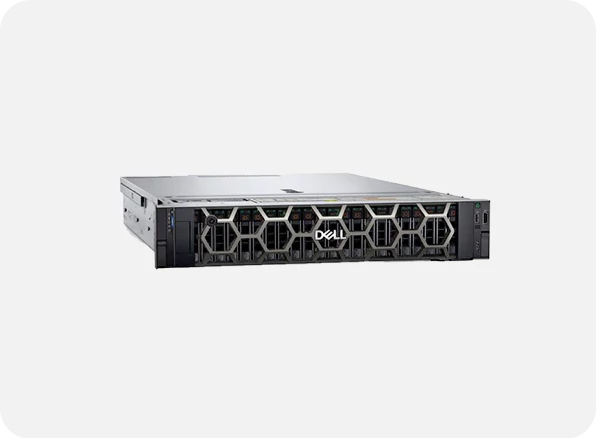

Features: Dell PowerEdge R750 Rack Server | Server Type / Form Factor: Type: Rack Server Form Factor: 2U Rackmount Socket: Dual socket (supports 3rd Generation Intel Xeon Scalable processors, up to 40 cores/socket) | Processor (CPU): Supported CPUs: Up to two 3rd Generation Intel Xeon Scalable processors (up to 40 cores per processor) Memory Channels: 8 channels per CPU Max TDP: Up to approx. 270 W per processor | Memory (RAM): Memory Type: DDR4 RDIMM or LRDIMM ECC DIMM Slots: Up to 32 DIMM slots (16 per CPU) Max Capacity: Up to 2 TB RDIMM or up to 8 TB LRDIMM Speed: Up to 3200 MT/s; supports Intel Optane Persistent Memory 200 Series (up to 8 modules per CPU) | Storage: Drive Bay Options: Supports up to 24 NVMe drives; various configurations of 2.5 SAS/SATA or NVMe (e.g. 8, 16, or 24 SFF) Controllers: Internal: PERC H745, H755, H755N, H345, HBA355i, S150; External: H840; Software RAID options | Expansion / Connectivity: PCIe Slots: Up to 8 PCIe Gen 4 expansion slots (full-height/low-profile depending on riser configuration) Networking: Embedded 2 × 1 GbE LOM; optional mezzanine & GPU support | Redundancy & Reliability: Power Supplies: Dual hot plug redundant PSUs: 700 W mixed mode Titanium, 800 W Platinum, 1100 W Titanium or 1400 W Platinum (AC or DC options) Cooling: Advanced cooling design; supports up to 6 fans and optional liquid cooling | Operating System Support: Microsoft Windows Server with Hyper V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi / vSAN Canonical Ubuntu Server LTS | Security Features: Cryptographically signed firmware; Silicon Root of Trust Secure Boot, Secure Erase, System Lockdown (requires iDRAC9 Enterprise/Datacenter) TPM 2.0 (FIPS and CC TCG certified) | Management & Monitoring: iDRAC9 with Lifecycle Controller; RESTful Redfish API; iDRAC Service Module Tools: Dell OpenManage Enterprise, CloudIQ; integrations with VMware, Microsoft System Center, Ansible, Terraform | Warranty & Support: Standard Warranty: 3 Year Dell Basic Hardware Warranty with Next Business Day Onsite Service Optional Extended Support: Dell ProSupport or ProSupport Plus available for extension beyond 3 years | Type: Server Type / Form Factor Rack Server Form Factor: 2U Rackmount Socket: Dual socket (supports 3rd Generation Intel Xeon Scalable processors, up to 40 cores/socket) | Type: Rack Server | Form Factor: 2U Rackmount | Socket: Dual socket (supports 3rd Generation Intel Xeon Scalable processors, up to 40 cores/socket) | Supported CPUs: Processor (CPU) Up to two 3rd Generation Intel Xeon Scalable processors (up to 40 cores per processor) Memory Channels: 8 channels per CPU Max TDP: Up to approx. 270 W per processor | Supported CPUs: Up to two 3rd Generation Intel Xeon Scalable processors (up to 40 cores per processor) | Memory Channels: 8 channels per CPU | Max TDP: Up to approx. 270 W per processor | Memory Type: Memory (RAM) DDR4 RDIMM or LRDIMM ECC DIMM Slots: Up to 32 DIMM slots (16 per CPU) Max Capacity: Up to 2 TB RDIMM or up to 8 TB LRDIMM Speed: Up to 3200 MT/s; supports Intel Optane Persistent Memory 200 Series (up to 8 modules per CPU) | Memory Type: DDR4 RDIMM or LRDIMM ECC | DIMM Slots: Up to 32 DIMM slots (16 per CPU) | Max Capacity: Up to 2 TB RDIMM or up to 8 TB LRDIMM | Speed: Up to 3200 MT/s; supports Intel Optane Persistent Memory 200 Series (up to 8 modules per CPU) | Drive Bay Options: Storage Supports up to 24 NVMe drives; various configurations of 2.5 SAS/SATA or NVMe (e.g. 8, 16, or 24 SFF) Controllers: Internal: PERC H745, H755, H755N, H345, HBA355i, S150; External: H840; Software RAID options | Drive Bay Options: Supports up to 24 NVMe drives; various configurations of 2.5 SAS/SATA or NVMe (e.g. 8, 16, or 24 SFF) | Controllers: Internal: PERC H745, H755, H755N, H345, HBA355i, S150; External: H840; Software RAID options | PCIe Slots: Expansion / Connectivity Up to 8 PCIe Gen 4 expansion slots (full-height/low-profile depending on riser configuration) Networking: Embedded 2 × 1 GbE LOM; optional mezzanine & GPU support | PCIe Slots: Up to 8 PCIe Gen 4 expansion slots (full-height/low-profile depending on riser configuration) | Networking: Embedded 2 × 1 GbE LOM; optional mezzanine & GPU support | Power Supplies: Redundancy & Reliability Dual hot plug redundant PSUs: 700 W mixed mode Titanium, 800 W Platinum, 1100 W Titanium or 1400 W Platinum (AC or DC options) Cooling: Advanced cooling design; supports up to 6 fans and optional liquid cooling | Power Supplies: Dual hot plug redundant PSUs: 700 W mixed mode Titanium, 800 W Platinum, 1100 W Titanium or 1400 W Platinum (AC or DC options) | Cooling: Advanced cooling design; supports up to 6 fans and optional liquid cooling | Standard Warranty: Warranty & Support 3 Year Dell Basic Hardware Warranty with Next Business Day Onsite Service Optional Extended Support: Dell ProSupport or ProSupport Plus available for extension beyond 3 years | Standard Warranty: 3 Year Dell Basic Hardware Warranty with Next Business Day Onsite Service | Optional Extended Support: Dell ProSupport or ProSupport Plus available for extension beyond 3 years | Socket: Dual socket (supports up to two 3rd Gen Intel Xeon Scalable processors, up to 40 cores/socket) | Supported CPUs: Up to two 3rd Generation Intel Xeon Scalable processors (up to 40 cores per socket, 270 W TDP) | Memory Type: TruDDR4 RDIMM / 3DS RDIMM ECC | DIMM Slots: Up to 32 slots total (16 per CPU) | Max Capacity: Up to 8 TB system memory (using 256 GB 3DS RDIMMs); up to 12 TB with persistent memory | Speed: Up to 3200 MT/s | Drive Bay Options: Front: up to 24 × 2.5 or 12 × 3.5 hot swap drives Middle: up to 8 × 2.5 or 4 × 3.5 hot swap bays Rear: up to 8 × 2.5 or 4 × 3.5 hot swap bays, plus two 7 mm boot drives | Boot Options: 2 × internal M.2 SATA/NVMe drives in RAID | Controllers: Onboard Intel VROC for SATA/NVMe; optional hardware RAID/HBA adapters | PCIe Slots: Up to eight PCIe Gen 4 slots (all rear accessible) plus one OCP 3.0 mezzanine slot; | GPU Support: Supports up to eight single width GPUs or three double width GPUs | Networking: Embedded LOM + optional OCP adapter for 1/10/25 GbE | Power Supplies: Dual hot plug redundant PSUs ranging from 750 W to 1800 W (Platinum/Titanium, AC or DC options) | Cooling: Air cooled with up to six hot swap fans and N+1 redundancy | Standard Warranty: 3 Years Warranty | Support Options: Warranty extensions available via Lenovo service plans
