Description

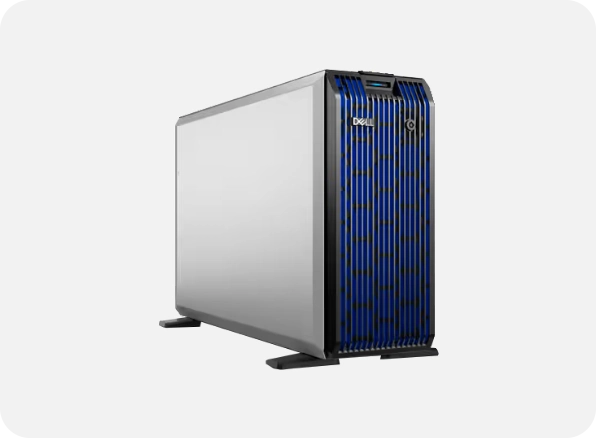

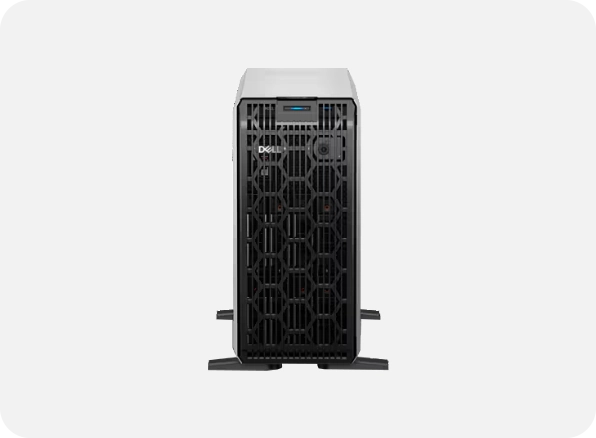

Features: Dell PowerEdge T360 Tower Server | Server Type / Form Factor: Type: Tower Server Form Factor: 4.5 U Tower chassis Socket: Single socket (Intel Xeon 6300 series or Xeon E 2400 series up to 8 cores; or Pentium G7400/G7400T, 2 cores) | Processor (CPU): Supported CPUs: One Intel Xeon 6300 series or one Intel Xeon E 2400 series processor (up to 8 cores) Also supports: Intel Pentium G7400 or G7400T (2 cores) | Memory (RAM): Memory Type: DDR5 ECC UDIMM DIMM Slots: 4 slots total Max Capacity: Up to 128 GB ECC UDIMM Speed: Up to 4400 MT/s | Storage: Drive Bay Options: Up to 4 × 3.5 SAS/SATA HDD/SSD (max ~64 TB) Up to 8 × 3.5 SAS/SATA (or with adapter 2.5 ) (max ~128 TB) Rear Bays: NA Controllers: Internal: PERC H355, H755, HBA355i; External: HBA355e; Boot: BOSS N1 dual M.2 NVMe; Software RAID: S160 | Expansion / Connectivity: PCIe Slots: PCIe Gen 5 and Gen 4 expansion slots (config dependent) Networking: Embedded dual 1 GbE LOM; supports optional NVIDIA A2 GPU (60 W) | Redundancy & Reliability: Power Supplies: Single or dual hot plug PSU options: 450 W (cabled), 600 W or 700 W Platinum/Titanium (hot swap capable) Cooling: Air cooled design with up to 4 hot swap fans and N+1 redundancy option | Operating System Support: Microsoft Windows Server with Hyper V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi Canonical Ubuntu Server LTS | Security Features: Cryptographically signed firmware and Silicon Root of Trust Data at Rest Encryption with Self Encrypting Drives (local or external key management support) Secure Boot, Secure Erase, Secured core server, System Lockdown (requires iDRAC9 Enterprise/Datacenter) TPM 2.0 (FIPS, CC TCG certified; includes optional China NationZ support) | Management & Monitoring: iDRAC9 with Lifecycle Controller; iDRAC Direct USB port; RESTful Redfish API; iDRAC Service Module Tools: Dell OpenManage Enterprise, CloudIQ; Power Manager, Service and Update Manager plugins; OpenManage Mobile; integrations with VMware vCenter™ and Microsoft System Center; Ansible & Terraform | Warranty & Support: Standard Warranty: 3 Year Dell Basic Hardware Warranty with Onsite Service (Next Business Day) Optional Extended Support: Dell ProSupport or ProSupport Plus available beyond 3 years | Type: Server Type / Form Factor Tower Server Form Factor: 4.5 U Tower chassis Socket: Single socket (Intel Xeon 6300 series or Xeon E 2400 series up to 8 cores; or Pentium G7400/G7400T, 2 cores) | Type: Tower Server | Form Factor: 4.5 U Tower chassis | Socket: Single socket (Intel Xeon 6300 series or Xeon E 2400 series up to 8 cores; or Pentium G7400/G7400T, 2 cores) | Supported CPUs: Processor (CPU) One Intel Xeon 6300 series or one Intel Xeon E 2400 series processor (up to 8 cores) Also supports: Intel Pentium G7400 or G7400T (2 cores) | Supported CPUs: One Intel Xeon 6300 series or one Intel Xeon E 2400 series processor (up to 8 cores) | Also supports: Intel Pentium G7400 or G7400T (2 cores) | Memory Type: Memory (RAM) DDR5 ECC UDIMM DIMM Slots: 4 slots total Max Capacity: Up to 128 GB ECC UDIMM Speed: Up to 4400 MT/s | Memory Type: DDR5 ECC UDIMM | DIMM Slots: 4 slots total | Max Capacity: Up to 128 GB ECC UDIMM | Speed: Up to 4400 MT/s | Drive Bay Options: Storage Up to 4 × 3.5 SAS/SATA HDD/SSD (max ~64 TB) Up to 8 × 3.5 SAS/SATA (or with adapter 2.5 ) (max ~128 TB) Rear Bays: NA Controllers: Internal: PERC H355, H755, HBA355i; External: HBA355e; Boot: BOSS N1 dual M.2 NVMe; Software RAID: S160 | Drive Bay Options: Up to 4 × 3.5 SAS/SATA HDD/SSD (max ~64 TB) Up to 8 × 3.5 SAS/SATA (or with adapter 2.5 ) (max ~128 TB) | Rear Bays: NA | Controllers: Internal: PERC H355, H755, HBA355i; External: HBA355e; Boot: BOSS N1 dual M.2 NVMe; Software RAID: S160 | PCIe Slots: Expansion / Connectivity PCIe Gen 5 and Gen 4 expansion slots (config dependent) Networking: Embedded dual 1 GbE LOM; supports optional NVIDIA A2 GPU (60 W) | PCIe Slots: PCIe Gen 5 and Gen 4 expansion slots (config dependent) | Networking: Embedded dual 1 GbE LOM; supports optional NVIDIA A2 GPU (60 W) | Power Supplies: Redundancy & Reliability Single or dual hot plug PSU options: 450 W (cabled), 600 W or 700 W Platinum/Titanium (hot swap capable) Cooling: Air cooled design with up to 4 hot swap fans and N+1 redundancy option | Power Supplies: Single or dual hot plug PSU options: 450 W (cabled), 600 W or 700 W Platinum/Titanium (hot swap capable) | Cooling: Air cooled design with up to 4 hot swap fans and N+1 redundancy option | Standard Warranty: Warranty & Support 3 Year Dell Basic Hardware Warranty with Onsite Service (Next Business Day) Optional Extended Support: Dell ProSupport or ProSupport Plus available beyond 3 years | Standard Warranty: 3 Year Dell Basic Hardware Warranty with Onsite Service (Next Business Day) | Optional Extended Support: Dell ProSupport or ProSupport Plus available beyond 3 years | Form Factor: 4U Tower chassis | Socket: Single socket (Intel Xeon E 2300 series up to 8 cores; or Pentium up to 2 cores) | Supported CPUs: One Intel Xeon E 2300 series processor (up to 8 cores) | Also supports: Intel Pentium processors (up to 2 cores) | Memory Type: ECC UDIMM DDR4 | Max Capacity: Up to 128 GB | Speed: Up to 3200 MT/s (2666 MT/s for Pentium) | Drive Bay Options: Up to 4 × 3.5 cabled SAS/SATA HDD/SSD (max ~30.72 TB) | Controllers: PERC H345, H355, H755; HBA355i; S150; Boot: BOSS S1 dual M.2 SSD; External: HBA355e | PCIe Slots: Typically up to two PCIe Gen 4 slots and two Gen 3 slots (config dependent) | Networking: Embedded dual 1 GbE LOM (Broadcom BCM5720); optional NIC via PCIe | Power Supplies: Single cabled PSU: 300 W Bronze or 400 W Platinum (100–240 VAC) | Cooling: One cabled system fan and one processor fan | Standard Warranty: 3 Year Dell Basic Hardware Warranty with Next Business Day Onsite Service
