Description

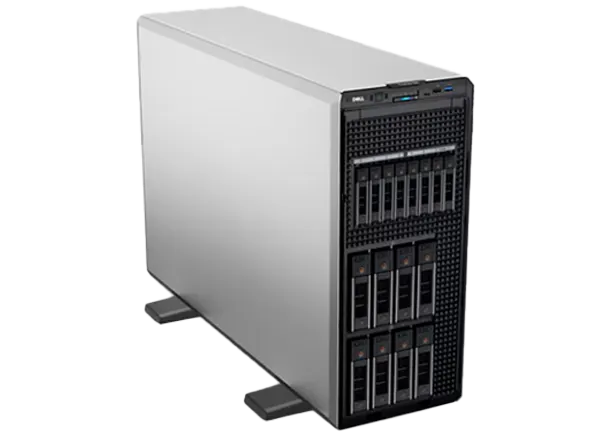

Features: Dell PowerEdge T560 Tower Server | Server Type / Form Factor: Type: Tower Server (rackable, 4.5U chassis) Socket: Dual socket, supports two Intel Xeon Scalable 4th or 5th Gen CPUs | Processor (CPU): Supported CPUs: Up to two 4th Generation Intel Xeon Scalable (up to 32 cores/CPU) Also supports: 5th Generation Intel Xeon Scalable (up to 28 cores/CPU) Max TDP: 250 W per processor | Memory (RAM): Type: DDR5 RDIMM ECC only DIMM Slots: 16 total (8 per CPU) Max Capacity: Up to 1 TB using RDIMM Speed: Up to 4800 MT/s (4th Gen) or 5200 MT/s (5th Gen) | Storage: Front Drive Bays: Up to 12 × 3.5 SAS/SATA HDDs (max 180 TB) Alternate: Up to 16 × 2.5 SAS/SATA (max 240 TB) or 24 × 2.5 (max 360 TB) Mixed: 8 × 3.5 + 8 × 2.5 NVMe SSDs (max 240 TB) Controllers: fPERC H965i, H755N, H755, H355, HBA355i; software RAID S160; BOSS N1 dual M.2 NVMe boot | Expansion / Connectivity: PCIe Slots: Up to 6 expansion slots (mix of Gen4 and Gen5 x16/x8 full height) GPU Support: Up to two 300 W double width or six 75 W single width GPUs Networking: Embedded dual 1 GbE LOM (Broadcom 5720); optional OCP 3.0 mezzanine | Redundancy & Reliability: Power Supplies: Redundant hot plug PSUs: 600 W Platinum, 700 W Titanium HLAC, 800 W, 1100 W, 1400 W, or higher (AC/DC options) Cooling: Up to 8 hot plug fans with high performance options for GPU/NVMe configurations | Operating System Support: Microsoft Windows Server (with Hyper V) Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi Ubuntu Server LTS | Security Features: Cyber Resilient Architecture: Silicon based root of trust, protected supply chain System Access: Multi Factor Authentication (MFA), role based access control | Management & Monitoring: Remote Management: iDRAC9 with Lifecycle Controller, dedicated iDRAC port Tools: Dell OpenManage Enterprise, OpenManage Mobile, Redfish API | Warranty & Support: Standard Warranty: 3 Year ProSupport with Next Business Day Onsite Optional Upgrades: ProSupport Plus, Mission Critical support | Type: Server Type / Form Factor Tower Server (rackable, 4.5U chassis) Socket: Dual socket, supports two Intel Xeon Scalable 4th or 5th Gen CPUs | Type: Tower Server (rackable, 4.5U chassis) | Socket: Dual socket, supports two Intel Xeon Scalable 4th or 5th Gen CPUs | Supported CPUs: Processor (CPU) Up to two 4th Generation Intel Xeon Scalable (up to 32 cores/CPU) Also supports: 5th Generation Intel Xeon Scalable (up to 28 cores/CPU) Max TDP: 250 W per processor | Supported CPUs: Up to two 4th Generation Intel Xeon Scalable (up to 32 cores/CPU) | Also supports: 5th Generation Intel Xeon Scalable (up to 28 cores/CPU) | Max TDP: 250 W per processor | Type: Memory (RAM) DDR5 RDIMM ECC only DIMM Slots: 16 total (8 per CPU) Max Capacity: Up to 1 TB using RDIMM Speed: Up to 4800 MT/s (4th Gen) or 5200 MT/s (5th Gen) | Type: DDR5 RDIMM ECC only | DIMM Slots: 16 total (8 per CPU) | Max Capacity: Up to 1 TB using RDIMM | Speed: Up to 4800 MT/s (4th Gen) or 5200 MT/s (5th Gen) | Front Drive Bays: Storage Up to 12 × 3.5 SAS/SATA HDDs (max 180 TB) Alternate: Up to 16 × 2.5 SAS/SATA (max 240 TB) or 24 × 2.5 (max 360 TB) Mixed: 8 × 3.5 + 8 × 2.5 NVMe SSDs (max 240 TB) Controllers: fPERC H965i, H755N, H755, H355, HBA355i; software RAID S160; BOSS N1 dual M.2 NVMe boot | Front Drive Bays: Up to 12 × 3.5 SAS/SATA HDDs (max 180 TB) | Alternate: Up to 16 × 2.5 SAS/SATA (max 240 TB) or 24 × 2.5 (max 360 TB) | Mixed: 8 × 3.5 + 8 × 2.5 NVMe SSDs (max 240 TB) | Controllers: fPERC H965i, H755N, H755, H355, HBA355i; software RAID S160; BOSS N1 dual M.2 NVMe boot | PCIe Slots: Expansion / Connectivity Up to 6 expansion slots (mix of Gen4 and Gen5 x16/x8 full height) GPU Support: Up to two 300 W double width or six 75 W single width GPUs Networking: Embedded dual 1 GbE LOM (Broadcom 5720); optional OCP 3.0 mezzanine | PCIe Slots: Up to 6 expansion slots (mix of Gen4 and Gen5 x16/x8 full height) | GPU Support: Up to two 300 W double width or six 75 W single width GPUs | Networking: Embedded dual 1 GbE LOM (Broadcom 5720); optional OCP 3.0 mezzanine | Power Supplies: Redundancy & Reliability Redundant hot plug PSUs: 600 W Platinum, 700 W Titanium HLAC, 800 W, 1100 W, 1400 W, or higher (AC/DC options) Cooling: Up to 8 hot plug fans with high performance options for GPU/NVMe configurations | Power Supplies: Redundant hot plug PSUs: 600 W Platinum, 700 W Titanium HLAC, 800 W, 1100 W, 1400 W, or higher (AC/DC options) | Cooling: Up to 8 hot plug fans with high performance options for GPU/NVMe configurations | Cyber Resilient Architecture: Security Features Silicon based root of trust, protected supply chain System Access: Multi Factor Authentication (MFA), role based access control | Cyber Resilient Architecture: Silicon based root of trust, protected supply chain | System Access: Multi Factor Authentication (MFA), role based access control | Remote Management: Management & Monitoring iDRAC9 with Lifecycle Controller, dedicated iDRAC port Tools: Dell OpenManage Enterprise, OpenManage Mobile, Redfish API | Remote Management: iDRAC9 with Lifecycle Controller, dedicated iDRAC port | Tools: Dell OpenManage Enterprise, OpenManage Mobile, Redfish API | Standard Warranty: Warranty & Support 3 Year ProSupport with Next Business Day Onsite Optional Upgrades: ProSupport Plus, Mission Critical support | Standard Warranty: 3 Year ProSupport with Next Business Day Onsite | Optional Upgrades: ProSupport Plus, Mission Critical support | Type: Tower Server | Form Factor: 4U rackable tower | Socket: Dual socket (supports 2nd Gen Intel Xeon Scalable Platinum/Silver up to 125 W per CPU) | Supported CPUs: Up to two 2nd Generation Intel Xeon Scalable processors (Platinum/Silver up to 125 W) | Memory Type: TruDDR4 ECC Registered | DIMM Slots: 12 slots total (6 per CPU) | Max Capacity: Up to 768 GB with 64 GB DIMMs | Speed: Up to 2933 MT/s (2666 MT/s also supported) | Drive Bay Options: Up to 16 × 2.5 SAS/SATA hot swap bays (including up to 4 NVMe) Or up to 8 × 3.5 hot swap bays Plus up to 4 × 2.5 internal bays + 2 × M.2 boot drives | Controllers: Software RAID standard; optional hardware RAID and up to 16 port HBAs available | PCIe Slots: Up to 6 × PCIe 3.0 slots (with 2 CPUs installed) | Networking: 2 × 1 GbE LOM standard; optional NICs via PCIe | Power Supplies: 1 × fixed 450 W Gold PSU; or 2 × hot swap redundant PSUs (550 W/750 W/1100 W Platinum, or 750 W Titanium) | Cooling: Hot swap chassis fans, chassis intrusion switch; drive/tray redundancy | Standard Warranty: 3 Years Warranty | Support Options: Warranty extensions available via Lenovo service offerings
