Description

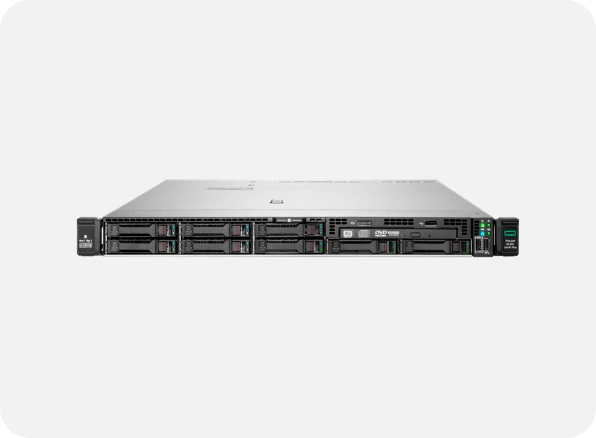

Features: HPE ProLiant DL360 Gen10 Plus Server | Server Type / Form Factor: Type: Rack Server Form Factor: 1U Rackmount Socket: Dual-socket (supports up to 2 processors) | Processor (CPU): Processor Family: 3rd Generation Intel Xeon Scalable Processors Cores per CPU: Up to 40 cores (e.g., Intel Xeon Platinum 8380, Gold 6338) Base Frequency: ~2.0 to ~3.1 GHz depending on model Max TDP: 165W to 270W per processor Security: Intel Software Guard Extensions (SGX) support | Memory (RAM): Type: DDR4 HPE SmartMemory (RDIMM / LRDIMM) and Intel Persistent Memory 200 Series DIMM Slots: 32 total (16 per socket, 8 channels per socket) Maximum Capacity: Up to 8.0 TB (32 × 256 GB LRDIMM @ 3200 MT/s) Up to 4.0 TB (32 × 64 GB RDIMM @ 3200 MT/s) Up to 6.0 TB per socket with Intel Optane Persistent Memory (not compatible with SGX) Memory Speed: Up to 3200 MT/s (depending on CPU and memory type) | Storage: Front Drive Bays: 8 × SFF standard Optional expansion to 12 × SFF (via +2 SFF mid tray) Optional 4 × LFF variant Rear/Mid Tray Options: Up to 6 × SFF rear or 8 × SFF mid tray Supported Types: SAS, SATA, NVMe (U.2 / U.3) via tri mode controllers Boot Options: Slot less HW RAID protected M.2 boot solution (NS204i r) | Expansion / Connectivity: PCIe Slots: Up to 9 × PCIe Gen4 slots across risers (primary, secondary, tertiary configurations) OCP Slot: 1 × OCP 3.0 x16 mezzanine slot for networking or storage options (up to 200GbE) | Redundancy & Reliability: Power Supplies: Redundant hot plug Flex Slot Platinum (e.g., 800W; required high-performance PSU for high-TDP CPU/NVMe/GPU configs) Cooling: Standard 5 hot-plug fans (up to 7 fans with high-performance kit for dual CPU/ NVMe/GPU setups) Chassis Intrusion Detection: Available as an option | Operating System Support: Microsoft Windows Server 2019 / 2022 Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) VMware ESXi 7.x and 8.x Other: Ubuntu, Oracle Linux, Citrix XenServer | Security Features: Silicon Root of Trust: Validates firmware and processor identity Secure Boot & Secure Erase: Enforces verified system startup and safe decommissioning Optional TPM 2.0 & Chassis Intrusion: Available as FIO options | Management & Monitoring: Integrated Lights-Out (iLO 5): Remote console, firmware updates, monitoring, health alerts Management Tools: HPE InfoSight, HPE OneView, Intelligent Provisioning API Support: RESTful API, Redfish, SNMP v3, IPMI 2.0 | Warranty & Support: Standard Warranty: 3-Year Parts, 3-Year Labor, 3-Year Onsite (Next Business Day) Optional Services: HPE Pointnext Tech Care, Foundation Care, Proactive Care | Type: Server Type / Form Factor Rack Server Form Factor: 1U Rackmount Socket: Dual-socket (supports up to 2 processors) | Type: Rack Server | Form Factor: 1U Rackmount | Socket: Dual-socket (supports up to 2 processors) | Processor Family: Processor (CPU) 3rd Generation Intel Xeon Scalable Processors Cores per CPU: Up to 40 cores (e.g., Intel Xeon Platinum 8380, Gold 6338) Base Frequency: ~2.0 to ~3.1 GHz depending on model Max TDP: 165W to 270W per processor Security: Intel Software Guard Extensions (SGX) support | Processor Family: 3rd Generation Intel Xeon Scalable Processors | Cores per CPU: Up to 40 cores (e.g., Intel Xeon Platinum 8380, Gold 6338) | Base Frequency: ~2.0 to ~3.1 GHz depending on model | Max TDP: 165W to 270W per processor | Security: Intel Software Guard Extensions (SGX) support | Type: Memory (RAM) DDR4 HPE SmartMemory (RDIMM / LRDIMM) and Intel Persistent Memory 200 Series DIMM Slots: 32 total (16 per socket, 8 channels per socket) Maximum Capacity: Up to 8.0 TB (32 × 256 GB LRDIMM @ 3200 MT/s) Up to 4.0 TB (32 × 64 GB RDIMM @ 3200 MT/s) Up to 6.0 TB per socket with Intel Optane Persistent Memory (not compatible with SGX) Memory Speed: Up to 3200 MT/s (depending on CPU and memory type) | Type: DDR4 HPE SmartMemory (RDIMM / LRDIMM) and Intel Persistent Memory 200 Series | DIMM Slots: 32 total (16 per socket, 8 channels per socket) | Maximum Capacity: Up to 8.0 TB (32 × 256 GB LRDIMM @ 3200 MT/s) Up to 4.0 TB (32 × 64 GB RDIMM @ 3200 MT/s) Up to 6.0 TB per socket with Intel Optane Persistent Memory (not compatible with SGX) | Memory Speed: Up to 3200 MT/s (depending on CPU and memory type) | Front Drive Bays: Storage 8 × SFF standard Optional expansion to 12 × SFF (via +2 SFF mid tray) Optional 4 × LFF variant Rear/Mid Tray Options: Up to 6 × SFF rear or 8 × SFF mid tray Supported Types: SAS, SATA, NVMe (U.2 / U.3) via tri mode controllers Boot Options: Slot less HW RAID protected M.2 boot solution (NS204i r) | Front Drive Bays: 8 × SFF standard Optional expansion to 12 × SFF (via +2 SFF mid tray) Optional 4 × LFF variant | Rear/Mid Tray Options: Up to 6 × SFF rear or 8 × SFF mid tray | Supported Types: SAS, SATA, NVMe (U.2 / U.3) via tri mode controllers | Boot Options: Slot less HW RAID protected M.2 boot solution (NS204i r) | PCIe Slots: Expansion / Connectivity Up to 9 × PCIe Gen4 slots across risers (primary, secondary, tertiary configurations) OCP Slot: 1 × OCP 3.0 x16 mezzanine slot for networking or storage options (up to 200GbE) | PCIe Slots: Up to 9 × PCIe Gen4 slots across risers (primary, secondary, tertiary configurations) | OCP Slot: 1 × OCP 3.0 x16 mezzanine slot for networking or storage options (up to 200GbE) | Power Supplies: Redundancy & Reliability Redundant hot plug Flex Slot Platinum (e.g., 800W; required high-performance PSU for high-TDP CPU/NVMe/GPU configs) Cooling: Standard 5 hot-plug fans (up to 7 fans with high-performance kit for dual CPU/ NVMe/GPU setups) Chassis Intrusion Detection: Available as an option | Power Supplies: Redundant hot plug Flex Slot Platinum (e.g., 800W; required high-performance PSU for high-TDP CPU/NVMe/GPU configs) | Cooling: Standard 5 hot-plug fans (up to 7 fans with high-performance kit for dual CPU/ NVMe/GPU setups) | Chassis Intrusion Detection: Available as an option | Silicon Root of Trust: Security Features Validates firmware and processor identity Secure Boot & Secure Erase: Enforces verified system startup and safe decommissioning Optional TPM 2.0 & Chassis Intrusion: Available as FIO options | Silicon Root of Trust: Validates firmware and processor identity | Secure Boot & Secure Erase: Enforces verified system startup and safe decommissioning | Optional TPM 2.0 & Chassis Intrusion: Available as FIO options | Integrated Lights-Out (iLO 5): Management & Monitoring Remote console, firmware updates, monitoring, health alerts Management Tools: HPE InfoSight, HPE OneView, Intelligent Provisioning API Support: RESTful API, Redfish, SNMP v3, IPMI 2.0 | Integrated Lights-Out (iLO 5): Remote console, firmware updates, monitoring, health alerts | Management Tools: HPE InfoSight, HPE OneView, Intelligent Provisioning | API Support: RESTful API, Redfish, SNMP v3, IPMI 2.0 | Standard Warranty: Warranty & Support 3-Year Parts, 3-Year Labor, 3-Year Onsite (Next Business Day) Optional Services: HPE Pointnext Tech Care, Foundation Care, Proactive Care | Standard Warranty: 3-Year Parts, 3-Year Labor, 3-Year Onsite (Next Business Day) | Optional Services: HPE Pointnext Tech Care, Foundation Care, Proactive Care | High-Density Data Centers: The 1U design makes it perfect for data centers requiring compact and powerful servers that optimize space. | Virtualization and Cloud Environments: Supports virtualized workloads and cloud hosting, providing flexibility for businesses adopting hybrid or cloud-based solutions. | Data Analytics and Processing: Offers robust processing power and storage scalability, making it ideal for data-driven applications and real-time analytics. | Edge Computing and Remote Sites: Compact, durable, and easily managed remotely, the DL360 Gen10 Plus fits well in edge computing and remote site environments. | Powerful Processing in a Compact Design: Features Intel® Xeon® Scalable processors, delivering high performance in a compact 1U form factor, ideal for space-constrained environments. | Flexible Storage Options: Supports a range of storage types, including NVMe, SAS, and SATA, offering flexible and scalable storage to meet diverse workload requirements. | Enhanced Security: Equipped with HPE’s Silicon Root of Trust and HPE iLO 5, providing advanced protection against firmware attacks and other cyber threats. | Energy-Efficient Operation: Designed for low power consumption, helping reduce operational costs while supporting eco-friendly initiatives. | Easy Remote Management: Integrated with HPE iLO 5 for seamless remote management, enabling efficient monitoring, configuration, and updates. | Ideal for Virtualization and Cloud Solutions: With its high processing power and memory capacity, it is ideal for virtualization, cloud hosting, and data-intensive applications. | Form Factor: 2U Rackmount | Socket: Dual socket (supports up to two 3rd Gen Intel Xeon Scalable processors, up to 40 cores/socket) | Supported CPUs: Up to two 3rd Generation Intel Xeon Scalable processors (up to 40 cores per socket, 270 W TDP) | Memory Type: TruDDR4 RDIMM / 3DS RDIMM ECC | DIMM Slots: Up to 32 slots total (16 per CPU) | Max Capacity: Up to 8 TB system memory (using 256 GB 3DS RDIMMs); up to 12 TB with persistent memory | Speed: Up to 3200 MT/s | Drive Bay Options: Front: up to 24 × 2.5 or 12 × 3.5 hot swap drives Middle: up to 8 × 2.5 or 4 × 3.5 hot swap bays Rear: up to 8 × 2.5 or 4 × 3.5 hot swap bays, plus two 7 mm boot drives | Boot Options: 2 × internal M.2 SATA/NVMe drives in RAID | Controllers: Onboard Intel VROC for SATA/NVMe; optional hardware RAID/HBA adapters | PCIe Slots: Up to eight PCIe Gen 4 slots (all rear accessible) plus one OCP 3.0 mezzanine slot; | GPU Support: Supports up to eight single width GPUs or three double width GPUs | Networking: Embedded LOM + optional OCP adapter for 1/10/25 GbE | Power Supplies: Dual hot plug redundant PSUs ranging from 750 W to 1800 W (Platinum/Titanium, AC or DC options) | Cooling: Air cooled with up to six hot swap fans and N+1 redundancy | Standard Warranty: 3 Years Warranty | Support Options: Warranty extensions available via Lenovo service plans
