Description

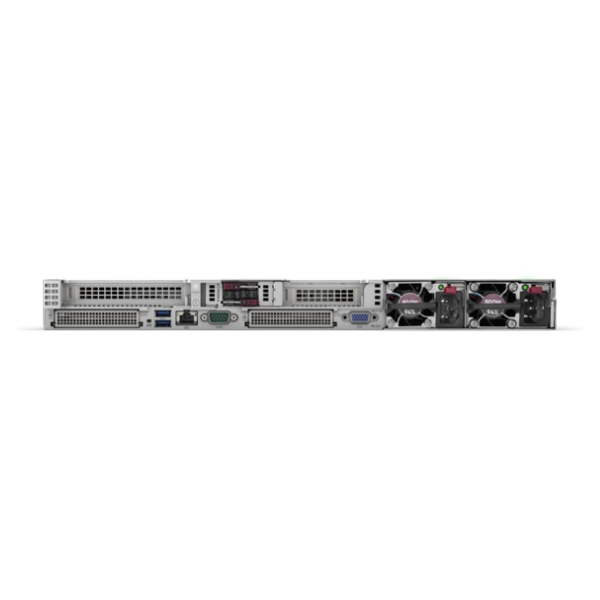

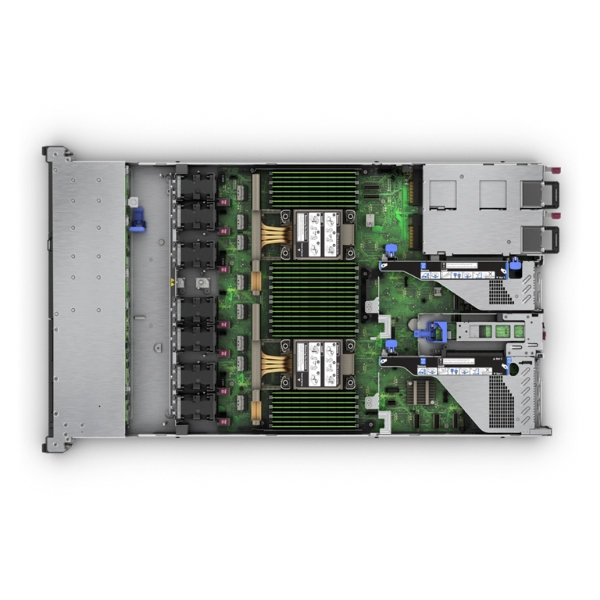

Features: HPE ProLiant DL360 Gen11 Server | Server Type / Form Factor: Type: Rack Server Form Factor: 1U Rackmount Socket: Dual-socket (supports up to 2 processors) | Processor (CPU): Processor Family: 4th and 5th Gen Intel® Xeon® Scalable Processors Max Supported: Up to 60 cores per processor (e.g., Intel Xeon Gold 6490N) Architecture: Intel 7 (10nm Enhanced SuperFin) Max TDP: Up to 350W per processor | Memory (RAM): Type: DDR5 Registered DIMMs (RDIMMs) DIMM Slots: 32 DIMM slots (16 per CPU) Max Capacity: Up to 8TB (with Intel Optane Persistent Memory) Speed: Up to 5600 MT/s Protection: ECC, Mirroring, Fast Fault Tolerance | Storage: Drive Bays: Up to 10x SFF or 4x LFF (front) Optional Rear: Up to 2x SFF/NVMe drives (depending on model) Supported Drive Types: SAS, SATA, NVMe RAID: HPE Smart Array Controllers (RAID 0, 1, 5, 6, 10, 50, 60) Max Capacity: Over 200TB depending on configuration | Expansion / Connectivity: PCIe Slots: Up to 3x PCIe Gen5 slots Networking: OCP 3.0 FlexibleLOM (1/10/25/100GbE options) GPU Support: Limited (1x Single-width GPU supported) | Redundancy & Reliability: Power: Redundant Hot-Plug Power Supplies (800W, 1300W, 1600W) Cooling: Redundant Hot-Plug Fans Drive Redundancy: Supported through RAID Firmware Security: HPE Silicon Root of Trust | Operating System Support: Microsoft Windows Server Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) VMware ESXi Canonical Ubuntu, Oracle Linux | Security Features: Silicon Root of Trust Secure Boot & Secure Erase TPM 2.0 (Standard or FIPS-certified optional) Chassis Intrusion Detection Firmware Runtime Verification | Management & Monitoring: iLO 6: HPE Integrated Lights-Out 6 Tools: HPE OneView, HPE InfoSight Predictive Analytics API Support: Redfish and RESTful API | Warranty & Support: Standard Warranty: 3 Years Parts, 3 Years Labor, 3 Years Onsite (Next Business Day) Optional Services: HPE Pointnext Tech Care, Foundation Care, and Proactive Care | Type: Server Type / Form Factor Rack Server Form Factor: 1U Rackmount Socket: Dual-socket (supports up to 2 processors) | Type: Rack Server | Form Factor: 1U Rackmount | Socket: Dual-socket (supports up to 2 processors) | Processor Family: Processor (CPU) 4th and 5th Gen Intel® Xeon® Scalable Processors Max Supported: Up to 60 cores per processor (e.g., Intel Xeon Gold 6490N) Architecture: Intel 7 (10nm Enhanced SuperFin) Max TDP: Up to 350W per processor | Processor Family: 4th and 5th Gen Intel® Xeon® Scalable Processors | Max Supported: Up to 60 cores per processor (e.g., Intel Xeon Gold 6490N) | Architecture: Intel 7 (10nm Enhanced SuperFin) | Max TDP: Up to 350W per processor | Type: Memory (RAM) DDR5 Registered DIMMs (RDIMMs) DIMM Slots: 32 DIMM slots (16 per CPU) Max Capacity: Up to 8TB (with Intel Optane Persistent Memory) Speed: Up to 5600 MT/s Protection: ECC, Mirroring, Fast Fault Tolerance | Type: DDR5 Registered DIMMs (RDIMMs) | DIMM Slots: 32 DIMM slots (16 per CPU) | Max Capacity: Up to 8TB (with Intel Optane Persistent Memory) | Speed: Up to 5600 MT/s | Protection: ECC, Mirroring, Fast Fault Tolerance | Drive Bays: Storage Up to 10x SFF or 4x LFF (front) Optional Rear: Up to 2x SFF/NVMe drives (depending on model) Supported Drive Types: SAS, SATA, NVMe RAID: HPE Smart Array Controllers (RAID 0, 1, 5, 6, 10, 50, 60) Max Capacity: Over 200TB depending on configuration | Drive Bays: Up to 10x SFF or 4x LFF (front) | Optional Rear: Up to 2x SFF/NVMe drives (depending on model) | Supported Drive Types: SAS, SATA, NVMe | RAID: HPE Smart Array Controllers (RAID 0, 1, 5, 6, 10, 50, 60) | Max Capacity: Over 200TB depending on configuration | PCIe Slots: Expansion / Connectivity Up to 3x PCIe Gen5 slots Networking: OCP 3.0 FlexibleLOM (1/10/25/100GbE options) GPU Support: Limited (1x Single-width GPU supported) | PCIe Slots: Up to 3x PCIe Gen5 slots | Networking: OCP 3.0 FlexibleLOM (1/10/25/100GbE options) | GPU Support: Limited (1x Single-width GPU supported) | Power: Redundancy & Reliability Redundant Hot-Plug Power Supplies (800W, 1300W, 1600W) Cooling: Redundant Hot-Plug Fans Drive Redundancy: Supported through RAID Firmware Security: HPE Silicon Root of Trust | Power: Redundant Hot-Plug Power Supplies (800W, 1300W, 1600W) | Cooling: Redundant Hot-Plug Fans | Drive Redundancy: Supported through RAID | Firmware Security: HPE Silicon Root of Trust | Silicon Root of Trust: Security Features Secure Boot & Secure Erase TPM 2.0 (Standard or FIPS-certified optional) Chassis Intrusion Detection Firmware Runtime Verification | iLO 6: Management & Monitoring HPE Integrated Lights-Out 6 Tools: HPE OneView, HPE InfoSight Predictive Analytics API Support: Redfish and RESTful API | iLO 6: HPE Integrated Lights-Out 6 | Tools: HPE OneView, HPE InfoSight Predictive Analytics | API Support: Redfish and RESTful API | Standard Warranty: Warranty & Support 3 Years Parts, 3 Years Labor, 3 Years Onsite (Next Business Day) Optional Services: HPE Pointnext Tech Care, Foundation Care, and Proactive Care | Standard Warranty: 3 Years Parts, 3 Years Labor, 3 Years Onsite (Next Business Day) | Optional Services: HPE Pointnext Tech Care, Foundation Care, and Proactive Care | DDR5 memory: Enhanced Memory and Storage With support for up to 6TB of DDR5 memory, the DL360 Gen11 provides faster access to data and applications, improving overall system performance Flexible storage: The server supports a variety of storage configurations including NVMe SSDs and SAS/SATA HDDs, allowing you to customize your storage solutions based on your specific needs | Unmatched Performance: Benefit from the power of Intel Xeon processors for superior performance. | Advanced Security: Protect your data with integrated security features. | Flexible Scalability: Customize and scale your infrastructure to meet evolving business needs. | Reliable Operation: Ensure maximum uptime with redundant components and a robust design. | Easy Management: Simplify IT operations with HPE iLO 6 remote management. | Virtualization and Cloud Workloads: Optimized for virtualized environments, the DL360 Gen11 is ideal for businesses deploying private or hybrid clouds. | Data-Intensive Applications: Suitable for handling large databases, analytics, and business intelligence applications. | Enterprise Applications: Perfect for mission-critical enterprise applications that demand reliability and high performance. | Remote Office and Edge Deployments: Its compact design makes it ideal for remote or branch offices needing reliable computing power in a small form factor. | Form Factor: 2U Rackmount | Socket: Dual socket (supports 4th or 5th Gen Intel Xeon Scalable up to 64 cores/socket) | Supported CPUs: Up to two 5th Gen Intel Xeon Scalable (up to 64 cores/thread per socket, TDP up to 350 W) | Also supports: 4th Gen Xeon Scalable (up to 60 cores/socket, 350 W TDP) | Memory Type: DDR5 RDIMM (TruDDR5) ECC | DIMM Slots: Up to 32 DIMM slots (16 per CPU) | Max Capacity: Up to 8 TB using 256 GB 3DS RDIMMs | Speed: Up to 5600 MT/s (5th Gen) or 4800 MT/s (4th Gen) | Drive Bay Options: Front: up to 12 × 3.5 or 24 × 2.5 hot swap bays Middle: up to 4 × 3.5 or 8 × 2.5 hot swap bays Rear: up to 4 × 3.5 or 8 × 2.5 hot swap, plus optional 2 × 7 mm boot bays | Boot Options: Internal 2 × M.2 SATA/NVMe drives in RAID | Controllers: Supports VROC/VMD, onboard SW RAID; optional hardware RAID/HBA adapters | PCIe Slots: Up to 12 PCIe Gen 4/5 slots plus 1 × OCP 3.0 mezzanine slot; up to 10 rear accessible PCIe slots | GPU Support: Up to 8 single-width GPUs or 3 double-width GPUs | Networking: LOM via OCP 3.0 slot or optional NIC adapters | Power Supplies: Dual hot plug redundant PSUs: 750 W – 2600 W, Platinum/Titanium (AC & DC options) | Cooling: Air cooled with N+1 hot swap fans (5 6 depending on config), supports performance and standard fan types | Standard Warranty: 3 Year Customer Replaceable Unit & Onsite Service | Optional Upgrades: 4 hour, 2 hour response, or extended up to 5 year coverage via Lenovo Services
