Description

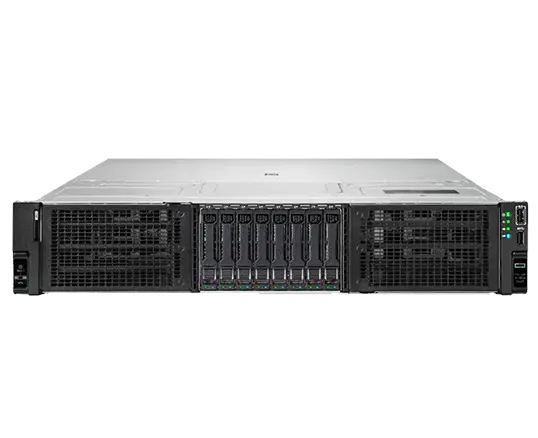

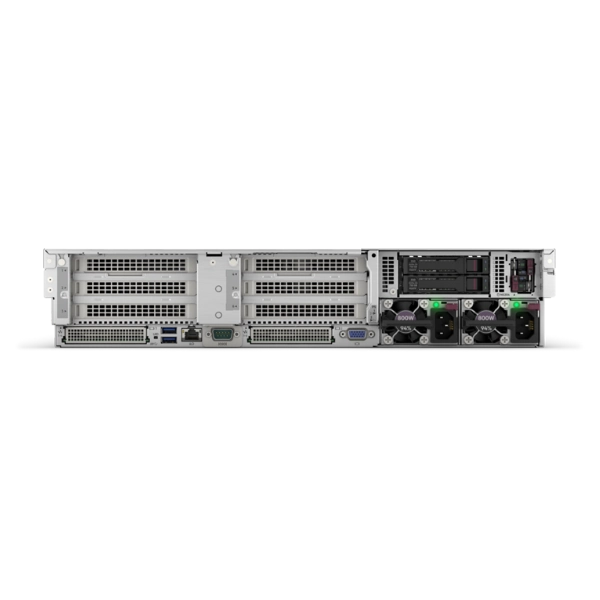

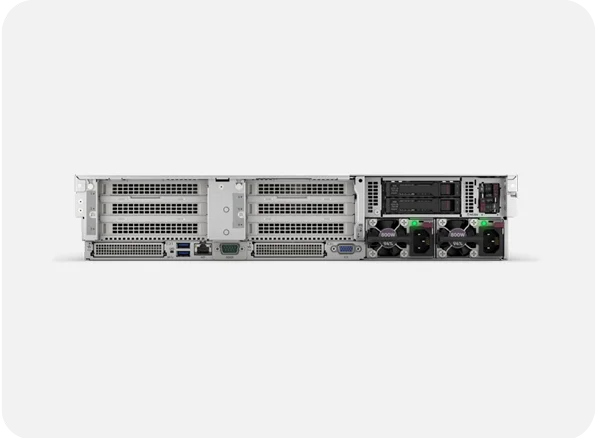

Features: HPE ProLiant DL385 Gen11 Server | Server Type / Form Factor: Type: Rack Server Form Factor: 2U Rackmount Socket: Dual-socket (supports up to 2 processors) | Processor (CPU): Processor Family: AMD EPYC™ 9004 Series Max Supported: Up to AMD EPYC 9654 (96 cores, 192 threads) Architecture: 5nm, Zen 4 Max TDP: Up to 400W per processor | Memory (RAM): Type: DDR5 Registered DIMMs (RDIMMs) DIMM Slots: 24 (12 per CPU) Max Capacity: Up to 6TB Speed: Up to 5600 MT/s Protection: ECC, Mirroring, Fast Failover | Storage: Drive Bays: Up to 12x LFF or 24x SFF (front) Rear Drives: Optional 2x SFF or NVMe Supported Types: SAS, SATA, NVMe RAID: HPE Smart Array (RAID 0, 1, 5, 6, 10, 50, 60) Max Capacity: Over 400TB (based on configuration) | Expansion / Connectivity: PCIe Slots: Up to 8x PCIe Gen5 Networking: OCP 3.0 Slot (1/10/25/100GbE options) GPU Support: Up to 4x Single-width or 3x Double-width GPUs | Redundancy & Reliability: Power: Redundant Hot-Plug Power Supplies (800W–2400W) Cooling: Redundant Hot-Plug Fans Drive Redundancy: RAID support Firmware Security: HPE Silicon Root of Trust | Operating System Support: Microsoft Windows Server Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) VMware ESXi Ubuntu, Oracle Linux, ClearOS | Security Features: Silicon Root of Trust Secure Boot & Secure Erase TPM 2.0 (FIPS-certified optional) Firmware Verification & Intrusion Detection | Management & Monitoring: iLO 6: Integrated Lights-Out Management Tools: HPE OneView, InfoSight, Redfish API Remote Access: Firmware Updates, Monitoring, Alerting | Warranty & Support: Warranty: 3-Year Parts, 3-Year Labor, 3-Year Onsite (Next Business Day) Optional Support: HPE Pointnext, Foundation Care, Proactive Care | Type: Server Type / Form Factor Rack Server Form Factor: 2U Rackmount Socket: Dual-socket (supports up to 2 processors) | Type: Rack Server | Form Factor: 2U Rackmount | Socket: Dual-socket (supports up to 2 processors) | Processor Family: Processor (CPU) AMD EPYC™ 9004 Series Max Supported: Up to AMD EPYC 9654 (96 cores, 192 threads) Architecture: 5nm, Zen 4 Max TDP: Up to 400W per processor | Processor Family: AMD EPYC™ 9004 Series | Max Supported: Up to AMD EPYC 9654 (96 cores, 192 threads) | Architecture: 5nm, Zen 4 | Max TDP: Up to 400W per processor | Type: Memory (RAM) DDR5 Registered DIMMs (RDIMMs) DIMM Slots: 24 (12 per CPU) Max Capacity: Up to 6TB Speed: Up to 5600 MT/s Protection: ECC, Mirroring, Fast Failover | Type: DDR5 Registered DIMMs (RDIMMs) | DIMM Slots: 24 (12 per CPU) | Max Capacity: Up to 6TB | Speed: Up to 5600 MT/s | Protection: ECC, Mirroring, Fast Failover | Drive Bays: Storage Up to 12x LFF or 24x SFF (front) Rear Drives: Optional 2x SFF or NVMe Supported Types: SAS, SATA, NVMe RAID: HPE Smart Array (RAID 0, 1, 5, 6, 10, 50, 60) Max Capacity: Over 400TB (based on configuration) | Drive Bays: Up to 12x LFF or 24x SFF (front) | Rear Drives: Optional 2x SFF or NVMe | Supported Types: SAS, SATA, NVMe | RAID: HPE Smart Array (RAID 0, 1, 5, 6, 10, 50, 60) | Max Capacity: Over 400TB (based on configuration) | PCIe Slots: Expansion / Connectivity Up to 8x PCIe Gen5 Networking: OCP 3.0 Slot (1/10/25/100GbE options) GPU Support: Up to 4x Single-width or 3x Double-width GPUs | PCIe Slots: Up to 8x PCIe Gen5 | Networking: OCP 3.0 Slot (1/10/25/100GbE options) | GPU Support: Up to 4x Single-width or 3x Double-width GPUs | Power: Redundancy & Reliability Redundant Hot-Plug Power Supplies (800W–2400W) Cooling: Redundant Hot-Plug Fans Drive Redundancy: RAID support Firmware Security: HPE Silicon Root of Trust | Power: Redundant Hot-Plug Power Supplies (800W–2400W) | Cooling: Redundant Hot-Plug Fans | Drive Redundancy: RAID support | Firmware Security: HPE Silicon Root of Trust | Silicon Root of Trust: Security Features Secure Boot & Secure Erase TPM 2.0 (FIPS-certified optional) Firmware Verification & Intrusion Detection | iLO 6: Management & Monitoring Integrated Lights-Out Management Tools: HPE OneView, InfoSight, Redfish API Remote Access: Firmware Updates, Monitoring, Alerting | iLO 6: Integrated Lights-Out Management | Tools: HPE OneView, InfoSight, Redfish API | Remote Access: Firmware Updates, Monitoring, Alerting | Warranty: Warranty & Support 3-Year Parts, 3-Year Labor, 3-Year Onsite (Next Business Day) Optional Support: HPE Pointnext, Foundation Care, Proactive Care | Warranty: 3-Year Parts, 3-Year Labor, 3-Year Onsite (Next Business Day) | Optional Support: HPE Pointnext, Foundation Care, Proactive Care | High-Performance Computing (HPC): Perfect for computationally intensive applications, including scientific computing and big data analytics. | Virtualization and Cloud Environments: Designed for demanding virtualized workloads, the DL385 Gen11 is ideal for companies moving to the cloud or adopting a hybrid infrastructure. | Data-Intensive Applications: Suitable for big data processing, machine learning, and large-scale database hosting, enabling fast data access and handling large volumes. | Enterprise Applications: Well-suited for enterprise-grade applications requiring robust performance, high availability, and scalability. | Powered by AMD EPYC™ Processors: Delivers outstanding performance for virtualization, cloud computing, databases, and AI-driven workloads. | High Memory & Storage Scalability: Supports DDR5 memory, PCIe Gen5 expansion, and flexible storage options to meet growing business demands. | Enterprise-Class Security: Features HPE Silicon Root of Trust and HPE iLO for advanced server protection and secure remote management. | Optimized for Virtualization: Ideal for virtual machines, software-defined storage, and hybrid cloud environments with exceptional efficiency. | Energy-Efficient Design: Engineered to maximize performance while reducing power consumption and operational costs. | Future-Ready Infrastructure: Built with a scalable architecture that adapts to evolving workloads, making it a reliable long-term investment. | Socket: Dual-socket (supports 2 CPUs) | Supported CPUs: Up to 2 × 4th Gen Intel Xeon Scalable (up to 56 cores/socket) or 2 × 5th Gen Intel Xeon Scalable (up to 64 cores/socket) | Optional: Intel QuickAssist Technology | Memory Type: DDR5 RDIMM ECC | DIMM Slots: 32 memory slots (16 per CPU) | Max Capacity: Up to 8 TB via RDIMM | Speed: Supports up to 4800 MT/s | Front Drive Bays (config dependent): Up to 12 × 3.5 SAS/SATA (max 240 TB) 8 × 2.5 SAS/SATA/NVMe (max 122.88 TB) 16 × 2.5 SAS/SATA/NVMe (max 245.76 TB) 24 × 2.5 SAS/SATA/NVMe (max 368.64 TB) | Rear Drive Bays: Options with 2 or 4 × 2.5 drives (up to ~61.44 TB) | Controllers: PERC H965i, H755, H355, HBA355i; BOSS N1 dual M.2 boot; Software RAID S160 | PCIe Slots: Up to 8 slots: mix of PCIe Gen4 and Gen5, full height and low profile | GPU Support: Supports 2 × double-width (350 W) or 6 × single-width (75 W) GPUs | Networking: Embedded dual 1 GbE LOM; optional OCP 3.0 mezzanine networking | Power Supplies: Hot plug redundant options: 800 W, 1100 W, 1400 W, 1800 W, 2400 W, 2800 W (Titanium/Platinum AC/DC) | Cooling: Multiple hot swap fans; optional direct liquid cooling | Standard Warranty: 3 Year ProSupport with Next Business Day Onsite Service | Upgrades: Optional ProSupport Plus or Mission Critical services
