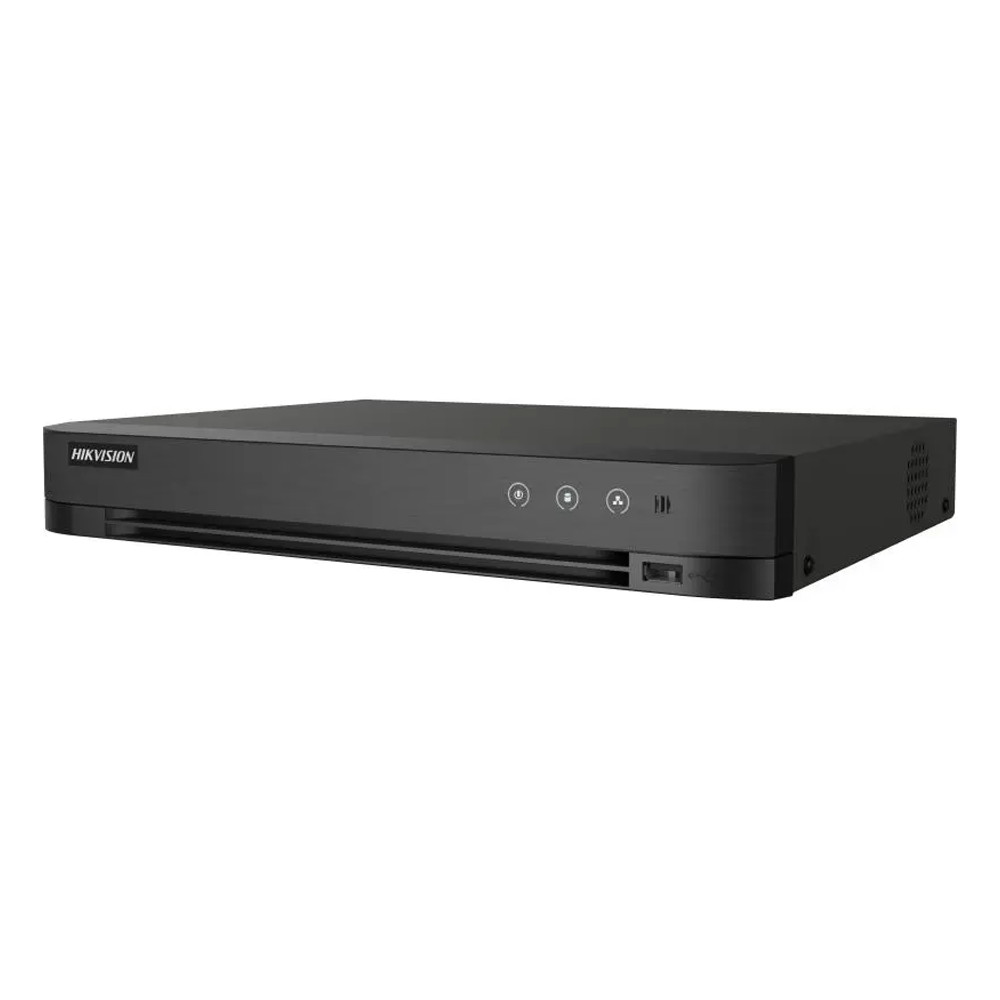

Hikvision 16-ch 1080p 1U H.265 AcuSense DVR, iDS-7216HQHI-M1-S

Description

Hikvision 16-ch 1080p 1U H.265 AcuSense DVR, iDS-7216HQHI-M1-S

16 channels and 1 HDD 1U AcuSense DVR

False alarm reduction through human and vehicle target classification based on deep learning

Efficient H.265 pro+ compression technology

Encoding ability up to 1080p @ 15 fps

5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)

Up to 24 network cameras can be connected.

Additional information

SPECIFICATION	Brand Hikvision Model Number iDS-7216HQHI-M1-S weight 2.00 kg Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels it can classify human and vehicle and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported Perimeter Protection Human/Vehicle Analysis- Up to 4-ch Facial Detection Facial Detection And Capture Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Encoding Resolution H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Encoding Resolution When 1080p Lite mode is not enabled 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF When 1080p Lite mode is enabled 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF Frame Rate Main stream- When 1080p Lite mode not enabled For 3K stream access; 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 5 MP stream access; 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 4 MP stream access; 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 1080p stream access; 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access; 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled Video Bitrate 32 Kbps to 6 Mbps Dual-Stream Support Stream Type Video Video & Audio Audio Compression G.711u Audio Bitrate 64 Kbps IP Video Input 2-ch (up to 18-ch) Enhanced IP mode on 8-ch (up to 24-ch) each up to 4 Mbps Package Dimension (W, H, L ) in cm 31.5 x 4.5 x 24.2 Warranty 1 Year Warranty

SPECIFICATION

Brand Hikvision
Model Number iDS-7216HQHI-M1-S
weight 2.00 kg
Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels it can classify human and vehicle and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported
Perimeter Protection Human/Vehicle Analysis- Up to 4-ch
Facial Detection Facial Detection And Capture
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Encoding Resolution
When 1080p Lite mode is not enabled
3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF
When 1080p Lite mode is enabled
3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame Rate Main stream- When 1080p Lite mode not enabled
For 3K stream access; 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 5 MP stream access; 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 4 MP stream access; 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 1080p stream access; 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access; 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled
Video Bitrate 32 Kbps to 6 Mbps
Dual-Stream Support
Stream Type Video Video & Audio
Audio Compression G.711u
Audio Bitrate 64 Kbps
IP Video Input 2-ch (up to 18-ch)
Enhanced IP mode on 8-ch (up to 24-ch) each up to 4 Mbps
Package Dimension (W, H, L ) in cm 31.5 x 4.5 x 24.2
Warranty 1 Year Warranty
