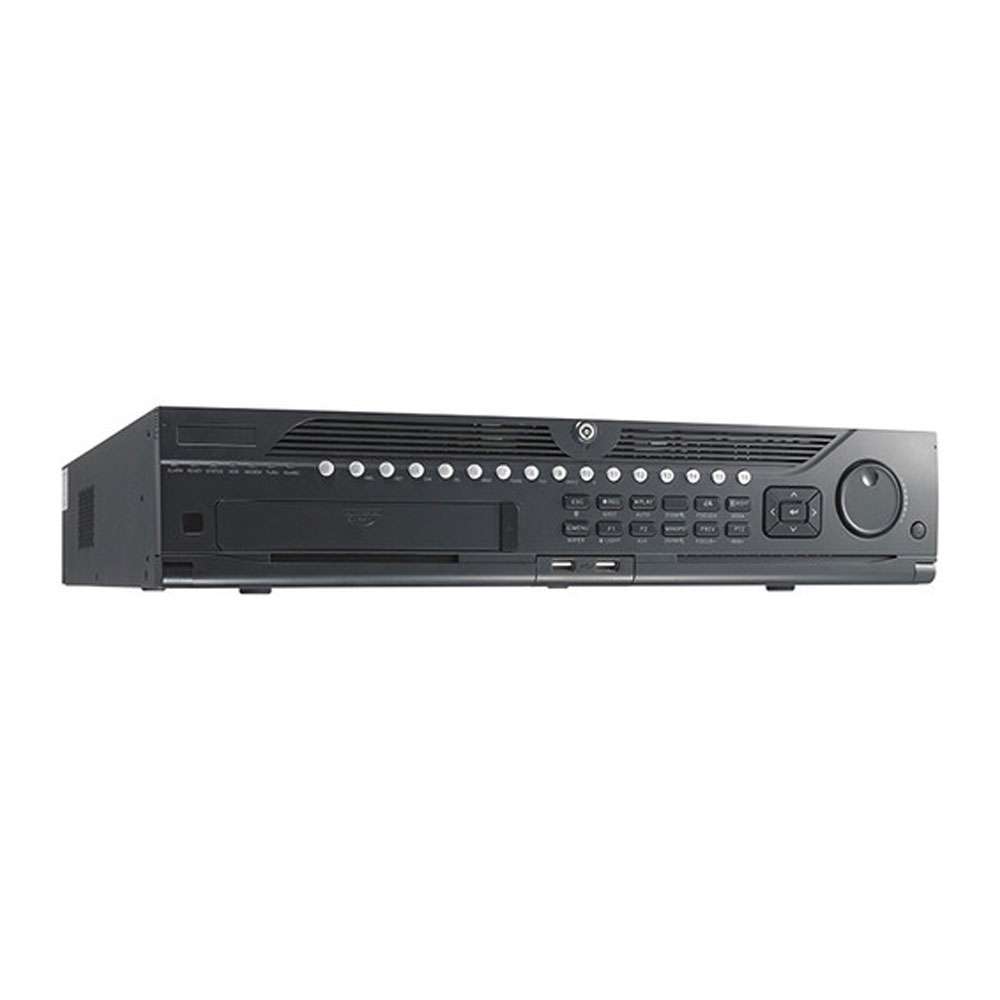

Hikvision 64 Channel 2U 4K NVR, DS-9664NI-I8

Description

Hikvision 64 Channel 2U 4K NVR, DS-9664NI-I8

Up to 64 channel IP cameras can be connected

Up to 12 MP high-definition live view, storage and playback

Up to 320 Mbps (or 200 Mbps when RAID is enabled) high incoming bandwidth ensures IP cameras can be connected

2 HDMI (different source) and 2 VGA (different source) interfaces

8 HDD can be used for continuous video recording

Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera

Advanced streaming technology enables smooth live view in poor network conditions

Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks

Additional information

SPECIFICATION	Brand Hikvision Model Number DS-9664NI-I8 Type Network/IP weight 10.00 kg No of channel 64-ch Serial Interface 1 RS-485 (full-duplex);1 RS-232; 1 keyboard SATA 8 SATA interfaces supporting hot-plug ESATA 1 eSATA interface Capacity Up to 10TB capacity for each disk Alarm In/Out 16/4 Playback Resolution HDMI (Output 1)- 3840 x 2160 (4K) HDMI (Output 2) – 1920 x 1080 (1080p) VGA (Output 1) – 2560 x 1440 (4 MP) VGA (Output 2) – 1920 x 1080 (1080p) Recording Resolution 1080p;720p; 4CIF; 2CIF;DCIF; QCIF; CIF; UXGA; VGA;3 MP; 4 MP;5 MP; 6 MP; 8 MP;12 MP Power Supply 100 to 240 VAC; 50 to 60 Hz Chassis 3U chassis Package Dimension (W, H, L ) in cm 44.5 x 9.2 x 46.5

SPECIFICATION

Brand Hikvision
Model Number DS-9664NI-I8
Type Network/IP
weight 10.00 kg
No of channel 64-ch
Serial Interface 1 RS-485 (full-duplex);1 RS-232; 1 keyboard
SATA 8 SATA interfaces supporting hot-plug
ESATA 1 eSATA interface
Capacity Up to 10TB capacity for each disk
Alarm In/Out 16/4
Playback Resolution HDMI (Output 1)- 3840 x 2160 (4K)
HDMI (Output 2) – 1920 x 1080 (1080p)
VGA (Output 1) – 2560 x 1440 (4 MP)
VGA (Output 2) – 1920 x 1080 (1080p)
Recording Resolution 1080p;720p; 4CIF; 2CIF;DCIF; QCIF; CIF; UXGA; VGA;3 MP; 4 MP;5 MP; 6 MP; 8 MP;12 MP
Power Supply 100 to 240 VAC; 50 to 60 Hz
Chassis 3U chassis
Package Dimension (W, H, L ) in cm 44.5 x 9.2 x 46.5
