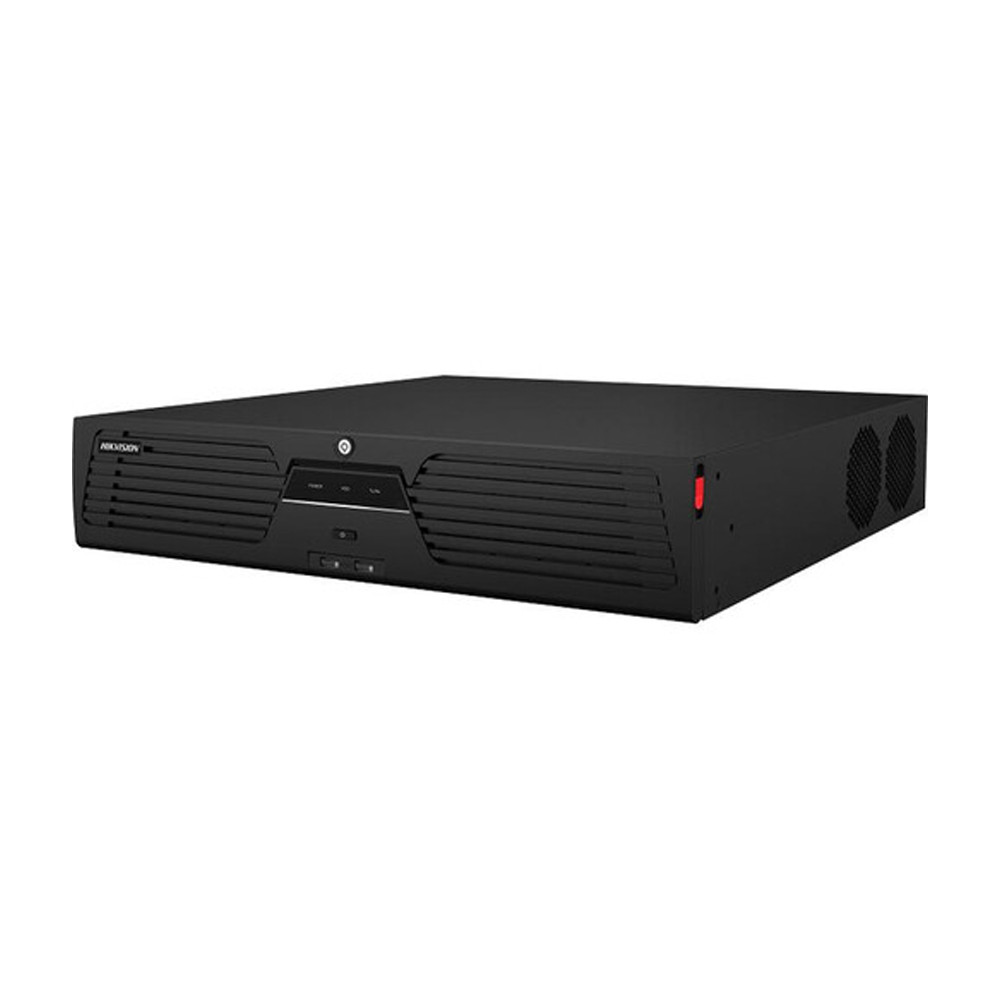

Hikvision M Series DS-9664NI-M8 64-Channel 8K NVR

Description

Hikvision M Series DS-9664NI-M8 64-Channel 8K NVR

Record from and manage up to 64 cameras with the M Series DS-9664NI-M8 64-Channel 8K NVR (No HDD) from Hikvision. This NVR supports IP cameras up to 32MP. It is equipped with eight SATA ports that each support an HDD up to 14TB, for a maximum capacity of 112TB (HDDs available separately). H.265+, H.265, H.264+, and H.264 video compressions keep file sizes manageable while maintaining the best quality possible.
This NVR supports two-way audio. Two HDMI and two VGA ports enable video output to an external monitor at up to 8K resolution (HDMI output 1 only).

Recording resolution up to 32MP

Dual-stream recording saves bandwidth

TLS encryption for secure transmission stream

16-channel synchronous playback

Smooth streaming technology

Hik-Connect enables seamless network management

Supports web access without plug-in

Smart & POS Functions

Supports multiple VCA (Video Content Analytics) events

Configurable camera smart functions include: VCA detection (motion, line crossing, intrusion), heat mapping, ANPR (automatic number-plate recognition), and people counting

POS information overlay on live view and playback

POS-triggered recording and alarm

Additional information

SPECIFICATION	Brand Hikvision Model Number DS-9664NI-M8 Connectivity Bluetooth, WiFi weight 10.00 kg Playback Resolution HDMI (Output 1) – 7680 x 4320 at 30 Hz 3840 x 2160 at 60 Hz HDMI (Output 2) – 3840 x 2160 at 60 Hz VGA (Output 1)- 1920 x 1080 at 60 Hz VGA (Output 2)- 1920 x 1080 at 60 Hz Throughput 400 Mb/s (Incoming) 400 Mb/s (Outgoing) A/V I/O 2x HDMI Output 2x Speaker Output 1x BNC CVBS Output (1 V p-p; 75 Ohm) 1x RCA Audio Output (1 Kilohm; Linear) 1x RCA Audio Input (2 V p-p; 1 Kilohm) Communication I/O 2x RJ45 Gigabit Ethernet 1x RS-485 (Full-Duplex) 1x RS-232 2x USB-A 3.0 / 3.1/3.2 Gen 1 2x USB-A 2.0 Audio I/O 1x Input 1x Output System Connection 8x SATA 1x eSATA Optical Drive No Power Consumption 50 W (Without HDD) Package Dimension (W, H, L ) in cm 44.5 x 9.3 x 46.5 Warranty 1 Year Warranty

SPECIFICATION

Brand Hikvision
Model Number DS-9664NI-M8
Connectivity Bluetooth, WiFi
weight 10.00 kg
Playback Resolution HDMI (Output 1) – 7680 x 4320 at 30 Hz
3840 x 2160 at 60 Hz
HDMI (Output 2) – 3840 x 2160 at 60 Hz
VGA (Output 1)- 1920 x 1080 at 60 Hz
VGA (Output 2)- 1920 x 1080 at 60 Hz
Throughput 400 Mb/s (Incoming)
400 Mb/s (Outgoing)
A/V I/O 2x HDMI Output
2x Speaker Output
1x BNC CVBS Output (1 V p-p; 75 Ohm)
1x RCA Audio Output (1 Kilohm; Linear)
1x RCA Audio Input (2 V p-p; 1 Kilohm)
Communication I/O 2x RJ45 Gigabit Ethernet
1x RS-485 (Full-Duplex)
1x RS-232
2x USB-A 3.0 / 3.1/3.2 Gen 1
2x USB-A 2.0
Audio I/O 1x Input
1x Output
System Connection 8x SATA
1x eSATA
Optical Drive No
Power Consumption 50 W (Without HDD)
Package Dimension (W, H, L ) in cm 44.5 x 9.3 x 46.5
Warranty 1 Year Warranty
